Disconnect/Connect Engine Wiring Harness To Remove Right Cylinder Head Cover - AR15.18-P-1000-06MNM
Engine 177 in model 217, 222
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143
| Number | Designation | 8.8 | 10.9 | |
|---|---|---|---|---|
| BA00.10-P-1002-04A | M6 x 1 | Nm | 9 | 13 |
GROUND STRAP
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA15.10-P-1003-05F | Bolt, engine wiring harness ground to cylinder head cover | Nm | 9 |

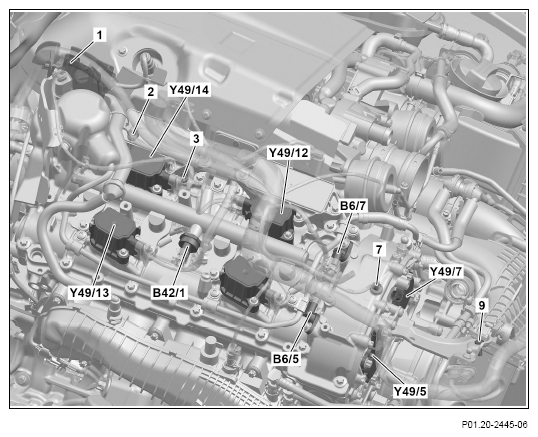

- Unclip holder (1) and place the engine wiring harness to one side.
- Unclip retaining clip (2).
- Release and disconnect electrical connector of CAMTRONIC actuator for exhaust cylinder 3 (Y49/14).
- Release and disconnect electrical connector of CAMTRONIC actuator for exhaust cylinder 2 (Y49/12).
- Release and disconnect electrical connector of CAMTRONIC actuator for exhaust cylinder 3 (Y49/13).
- Release and disconnect electrical connector from right exhaust camshaft Hall sensor (B6/7).
- Release and disconnect electrical connector from right intake camshaft Hall sensor (B6/5).
- Release and disconnect electrical connector from right exhaust camshaft adjustment solenoid (Y49/7).
- Release and disconnect electrical connector from right intake camshaft adjustment solenoid (Y49/5).
- Release and disconnect electrical connector from right fuel pressure and temperature sensor (B42/1).
- Release and disconnect electrical connector from fuel injectors of cylinder 1 to 3 (Y76/1, Y76/2, Y76/3).
- Unclip retaining clip (7).
- Remove screw/bolt (9)
.
- Remove screw (3)
- Connect in reverse order.
