Disassemble/Assemble Front Bumper - AR88.20-P-2050LC
Model 217
MODIFICATION NOTES
| 09.03.2017 | Method change | Operation steps 6.1 and 6.2 |

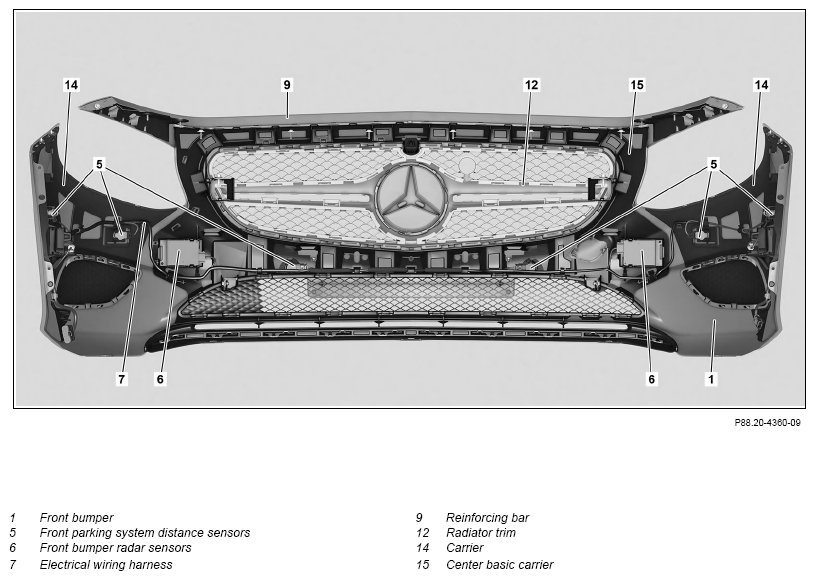

Shown on vehicle up to model year 2018

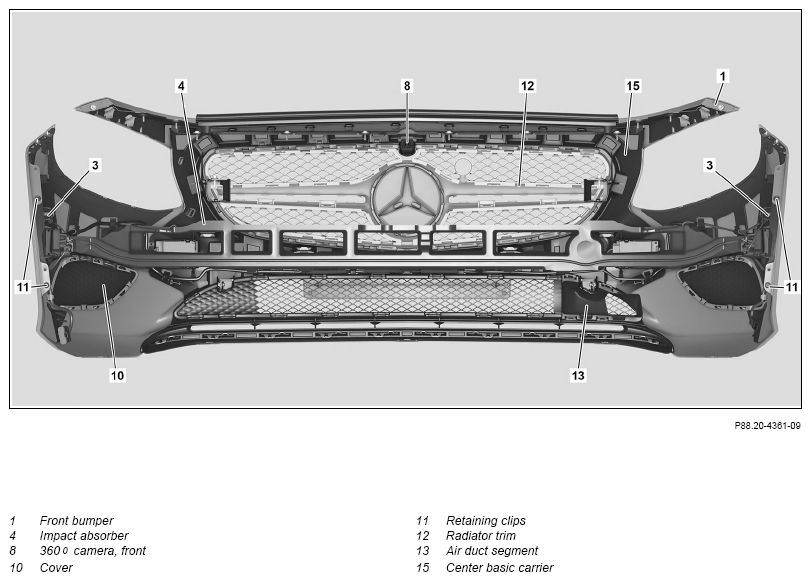

Shown on vehicle up to model year 2018
Shown on vehicle up to model year 2018
| Remove | |||
| 1 | Remove front bumper (1) | AR88.20-P-2000LC | |
| Disassemble/assemble | |||
| 2 | Remove license plate number and bracket (2) | ||
| 3 | Remove pedestrian protection sensors | Model 217 with code U60 (Active Bonnet (Pedestrian protection)) |
AR91.60-P-0950EWM |
| 4 | Remove impact absorber (4) | ||
| Topical note | General information on the impact absorber | AH88.20-P-1000-01A | |
| 5 | Remove front parking system distance sensors (5) | AR54.65-P-0001LF | |
| 6.1 | Unclip front bumper radar sensors (6) | Model 217 up to model year 2018 with code 233 (DISTRONIC PLUS) Model 217 up to model year 2018 with code 237 (Active Blind Spot Assist) Model 217 up to model year 2018 with code 238 (Active lane keeping Assist) Model 217 up to model year 2018 with code 258 (COLLISION PREVENTION ASSIST) Model 217 up to model year 2018 with code 266 (DISTRONIC PLUS with Steer Assist and Stop & Go Pilot) Model 217 up to model year 2018 with code 268 (Brake Assist System Plus) Model 217 up to model year 2018 with code 269 (Brake Assist PLUS with Cross-Traffic Assist (BAS+Q) Model 217 up to model year 2018 with code 271 (Autonomous brake intervention/pedestrian protection) Model 217 up to model year 2018 with code 300 (PRE-SAFE® Brake) |
AR30.30-P-1210LF |
| 6.2 | Remove front bumper radar sensor (6) | Model 217 as of model year 2018 with code 258 (COLLISION PREVENTION ASSIST) |
AR30.30-P-1210LFM |
| 7 | Unclip and remove electrical wiring harness (7) from front bumper (1) | ||
| 8 | Remove 3600 camera (front) (8) | Model 217 with code 501 (360° camera) |
AR54.30-P-3001LC |
| 9 | Unclip and remove electrical wiring harness of front 3600 camera (8) from front bumper (1) | Model 217 with code 501 (360° camera) |
|
| 10 | Remove reinforcing bar (9) | ||
| 11 | Remove cover (10) | Fig 1 | |
| 12 | Remove retaining clips (11) | ||
| 13 | Remove radiator grille (12) | ||
| 14 | Unclip air duct segment (13) and take off | ||

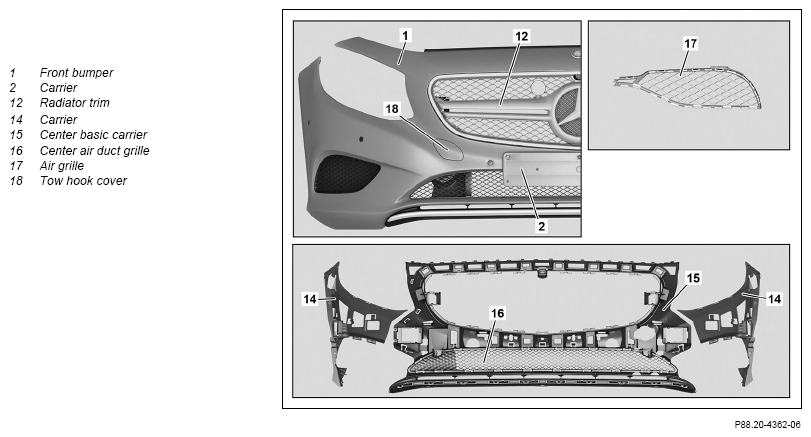

| 15 | Unclip and remove left and right bracket (14) | Fig 1 | |
| 16 | Unclip and remove center basic bracket (15) | with code 772 (AMG styling package - front spoiler, side skirts and rear apron) The center basic carrier (15) is disconnected from the center air duct grille (16). |
Fig 1 |
| 17 | Remove left air grille (17) and right air grille (17) from front bumper (1) | If installed. |
Fig 1 |
| 18 | Remove tow hook cover (18) | ||
| 19 | Assemble in the reverse order | ||
| Install | |||
| 20 | Install front bumper (1) | AR88.20-P-2000LC |
