Remove/Install Parktronic System (PTS) Sensors In Front Bumper - AR54.65-P-0001LF
Model 217
Model 222
with code 235 (Active Parking Assist with PARKTRONIC)
Shown on model 222

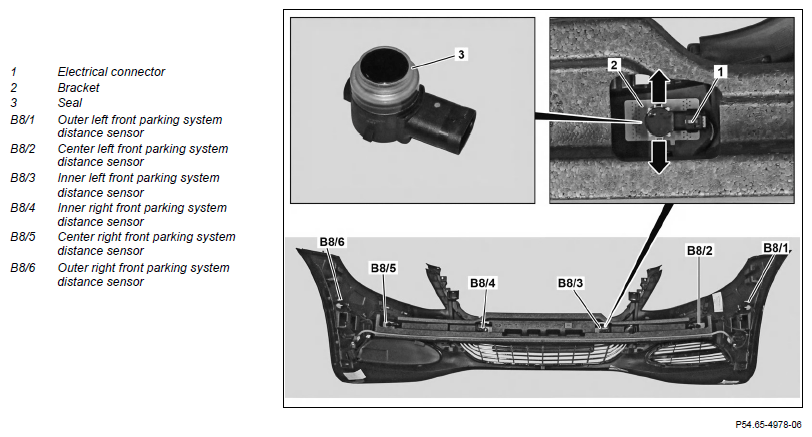

Fig 1: Front Parking Distance Sensors (Front Bumper) Component Location - Model 217 With Code 235 (Shown On Model 222)
| Remove/install | |||
| 1 | Remove front bumper | MODEL 217 | AR88.20-P-2000LC |
| MODEL 222 | AR88.20-P-2000LF | ||
| 2 | Unlock electrical connection (1) at front parking system distance sensors (B8/1-6) and pull off | ||
| 3 | Release retaining lugs (arrows) and remove front parking system distance sensors (B8/1-6) from corresponding brackets (2) | ||
| 4 | Install in the reverse order | ||
| Check | |||
| 5 | Perform function test |
