Retrofit Illuminated Door Sill Molding With Mercedes-Benz Lettering - AZ82.20-P-0005LC

Model 217.3/4 up to 1/14/18

except code 494 (US version)

Model 217.3/4 up to 2/28/18

with code 494 (US version)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Remove front floor covering on driver side
			AR68.20-P-2050LC
2	Remove side trim from instrument panel on driver's side

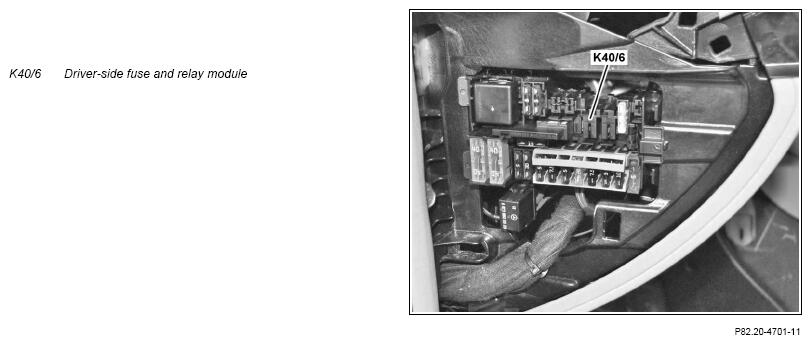

3	Detach driver-side fuse and relay module (K40/6)	Do not disconnect electrical leads.
4	Remove outer door sills at front left and right and remove any adhesive residue
Topical note	Notes on removing adhesive residues and foils on paint and metal surfaces with surface conditioning disks	Left and right door sill moldings are no longer required. Use commercially available surface conditioning disk with dia. 100 mm.	AH00.00-P-0013-01AK
		Mounting wedge	Fig 1
5	Remove door sill at front on front passenger side
			AR68.30-P-4100LC
6	Fold back floor covering at front on front passenger side
7	Release front footrest on passenger side and fold back
8	Remove cover below instrument panel on passenger side
			AR68.10-P-1520LF
	Install
9	Retrofit illuminated door sill molding control unit		AZ82.20-P-0005-05LC
		Binder Duotec® Pilz in Pilz Klett - with adhesive 32	*BR00.45-Z-1084-02A
10	Retrofit wiring harness for illuminated door sill moldings		AZ82.20-P-0005-01LC
Topical note	Notes on the use of paint scraping nuts on ground connections		AH00.19-P-1000-20A
		Front passenger footwell frame floor assembly ground point	*BA00.19-P-1029-01J

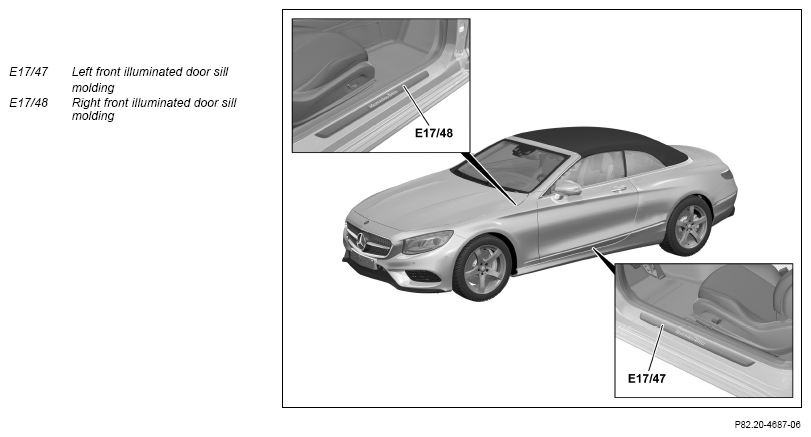

11	Retrofit left front illuminated door sill molding (E17/47) and right front illuminated door sill molding (E17/48)		AZ82.20-P-0005-10LC
		Cleaner	*BR00.45-Z-1025-04A
	Check
12	Carry out function check	Front left illuminated door sill molding (E17/47) or front right illuminated door sill molding (E17/48) is switched on by opening corresponding front door. Automatic shutoff takes place after approx. 5 min.
	Install
13	Install remaining parts
	Update Vehicle Documentation (VeDoc)
14	Attach note "Illuminated door sill moldings retrofitted as per AZ82.20-P-0005LC " under field organization texts to design group 68 and design group 82.

GROUND POINTS

Number	Designation			Model 217 up to model year 2018	Model 217 as of model year 2018
BA00.19-P-1029-01J	Front passenger footwell frame floor assembly	W85/2 ground point	Nm	10	10

Fig 1: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71
BR00.45-Z-1084-02A	Binder Duotec® Pilz in Pilz Klett - with adhesive 32	Klettband Technik Schultz UG Schulstrasse 6 71111 Waldenbuch Germany Tel.: +49 (0) 7157 6754-83 or 82 Fax: +49 (0) 7157 6696815 info@klettband-technik.de http://www.klettband-technik.de

PARTS ORDERING NOTE

Part no.	Designation	Quantity
KG 98 (see EPC)	Parts kit for illuminated door sill moldings.	1
