Remove/Install Stabilizer Bar At Front Axle - AR32.35-P-2200S

Model 223

except code 490 (Electrohydraulic suspension)

MODIFICATION NOTES

02.04.2021	Nut, torsion bar linkage to torsion bar	Model 223 except code Z07 (B7 Armoring for special protection version)	BA32.20-P-1001-02O
02.04.2021	Nut torsion bar rod to torsion bar	Model 223 except code Z07 (B7 Armoring for special protection version)	BA32.20-P-1001-02O
02.04.2021	Bolt, torsion bar to front axle carrier	Model 223 except code Z07 (B7 Armoring for special protection version)	BA32.20-P-1003-02O
02.04.2021	Screw torsion bar on front axle carrier	Model 223 except code Z07 (B7 Armoring for special protection version)	BA32.20-P-1003-02O

Courtesy of MERCEDES-BENZ USA

Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove/install
1	Remove center and rear engine compartment lining.		AR61.20-P-1105S
2	Remove front diagonal struts.		AR61.10-P-5141S

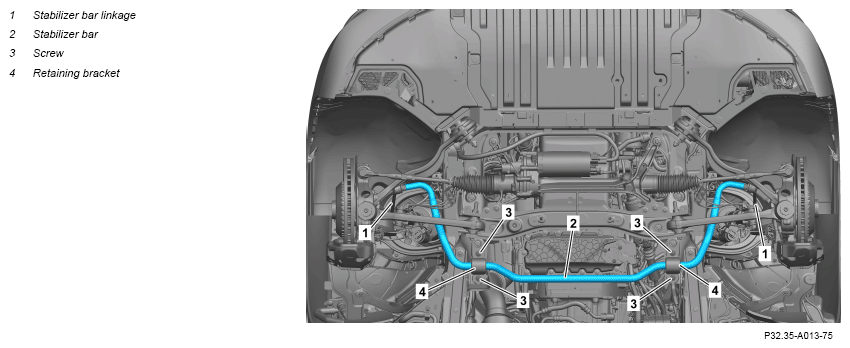

3	Detach torsion bar linkages (1) from stabilizer (2).	Model 223 except code 490 (Electrohydraulic suspension) except code Z07 (B7 armoring on special protection version) Nut, torsion bar linkage to torsion bar	*BA32.20-P-1001-02O
4	Unscrew screws (3) and remove mounting frame bows (4).	Model 223 except code 490 (Electrohydraulic suspension) except code Z07 B7 armoring on special protection version) Bolt, torsion bar to front axle carrier	*BA32.20-P-1003-02O
5	Remove stabilizer (2) downward.	: First position stabilizer (2) on torsion bar linkage (1)
6	Install in the reverse order.

FRONT AXLE TORSION BAR

Number	Designation		Model 223 except code 490 (Electrohydraulic suspension) except code Z07 (B7 armoring on special protection version)
BA32.20-P-1001-02O	Nut, torsion bar linkage to torsion bar	Nm	100

FRONT AXLE TORSION BAR

Number	Designation		Model 223 except code 490 (Electrohydraulic suspension) except code Z07 (B7 armoring on special protection version)
BA32.20-P-1003-02O	Bolt, torsion bar to front axle carrier	Nm	70
