Check Condition Of Steering And Front Axle Tie Rods - AP46.00-P-4652S
Model 223
Shown on model 223.163
Shown on model 223.163
Shown on model 223.163
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury from engine start by remote start function | Prior to starting work, open engine hood, do not reach into rotation range or hazard area of freely rotating parts, wear closed and snug-fitting work clothes | AS00.00-Z-0024-01A | |
| Preparatory activity | |||
| 1 | Unlock steering lock. | ||
| Remove | |||

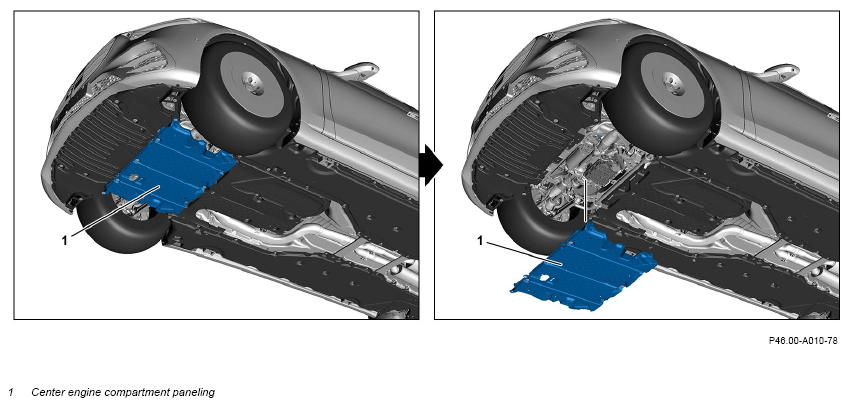

| 2 | Remove center engine compartment lining (1). | ||
| AR61.20-P-1105S | |||
| Check | |||

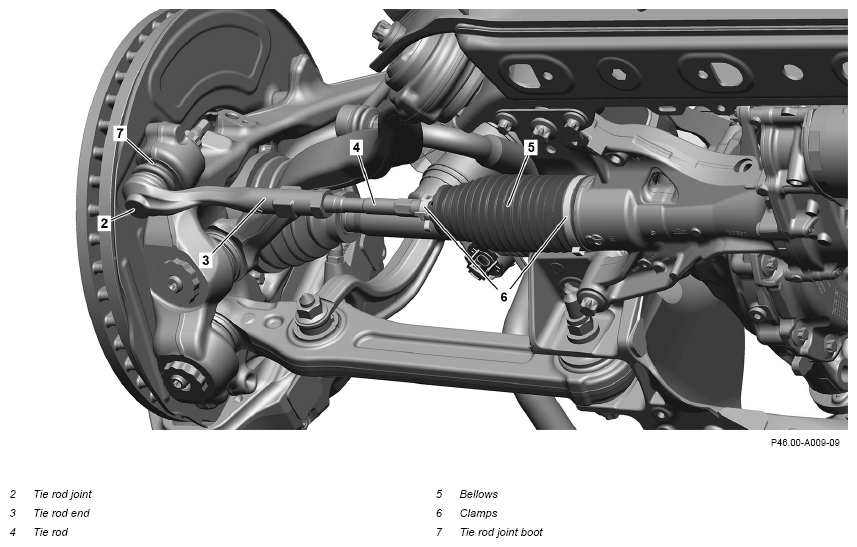

| 3 | Check tie rod joint boots (7) of tie rod ends (3) for condition, leak tightness and correct seating. | Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1 If problems are determined, ↓ rectify the problems. |
|
| 4 | Check tie rod joints (2) for play by firmly pulling and pushing the tie rod ends (3). | If problems are determined, ↓ rectify the problems. |
|
| 5 | Check tie rod ends (3) and tie rods (4) for firm connection by pulling and pushing each one. | If problems are determined, ↓ rectify the problems. |
|
| 6 | Check each inner tie rod joint for play by firmly pulling and pushing on tie rods (4) in direction of rack-and-pinion steering (8). | If problems are determined, ↓ rectify the problems. |
|
| 7 | Stretch boots (5) by turning steering all the way to right and left, and check for cracks, indentations and chafe marks. | Otherwise, damage may occur with consequential damage. Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1 If problems are determined, ↓ rectify the problems. |
|
| 8 | Check clamps (6) are firmly and correctly seated. | Otherwise, damage may occur with consequential damage. Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1 If problems are determined, ↓ rectify the problems. |
|

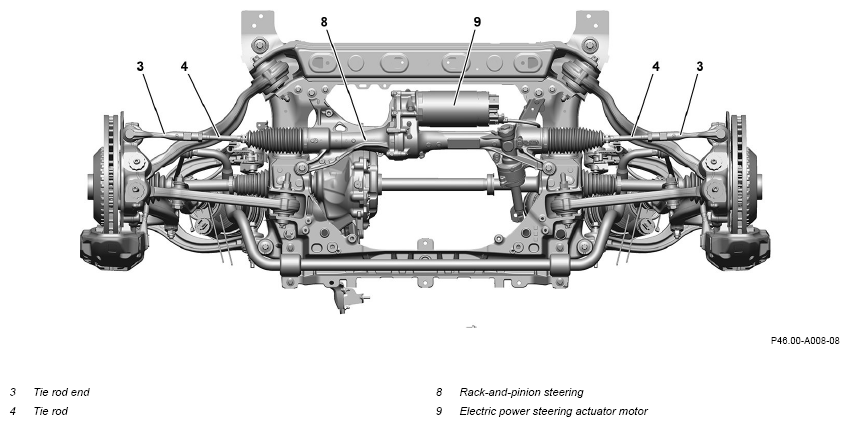

| 9 | Check rack-and-pinion steering (8) for damage, deformation, corrosion and firm seating. | Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1 If problems are determined, ↓ Replace steering for safety reasons. |
|
| 10 | Check electric power steering actuator motor (9) for external damage. | Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1 If problems are determined, ↓ Replace steering for safety reasons. |
|
| Install | |||
| 11 | Install center engine compartment lining (1). | ||
| AR61.20-P-1105S |
