Remove/Install Right Rear Seat Belt Buckle - AR91.40-P-1528SA

Model 223

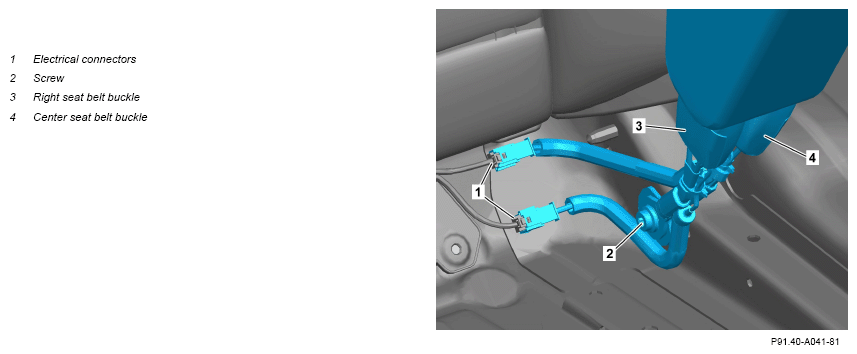

Shown on vehicle except code 223 (Electric rear seat backrest adjustment and head restraints) and except code 224 (Individual rear seat system design)

Courtesy of MERCEDES-BENZ USA

	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Remove seat cushion in rear passenger compartment.	Model 223 with code 223 (Electric backrest adjustment and head restraints) except code 224 (Individual rear seats) Model 223 with code 223 (Electric backrest adjustment and head restraints) with code 224 (Individual rear seats)	AR91.12-P-1022SA
		Model 223 except code 223 (Electric backrest adjustment and head restraints) except code 224 (Individual rear seats)	AR91.12-P-1022S
2	Disconnect electrical connectors (1).
3	Remove bolt (2).	Bolt at belt buckle (belt buckle/belt anchor fitting tensioner)	*BA91.40-P-1001-01T
4	Remove right seat belt buckle (3) together with center seat belt buckle (4).	The right seat belt buckle (3) and the center seat belt buckle (4) form a unit and must be removed or replaced together. Check for correct installation position of right seat belt buckle (3) and center seat belt buckle (4).
5	Install in the reverse order.
