Remove/Install Paneling On B-Pillar - AR68.30-P-4700SG
Model 223
with code Z07 (B7 armoring on special protection version)
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Move front seat to the front end position. | ||
| 2 | Remove front and rear door sill panels. | If the lower B-pillar trim (2) is removed. | |

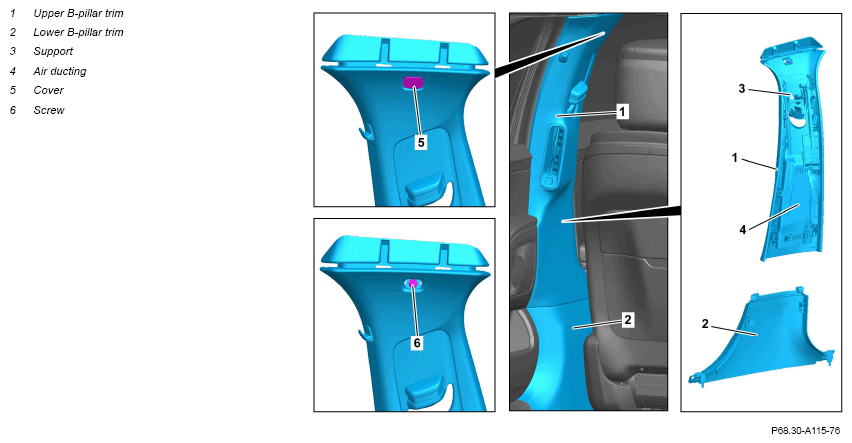

| Fig 1 | |||
| 3 | Release edge guard in area of B-pillar. | ||
| 4 | Move front seat to foremost position and all the way up. | ||
| 5 | Unclip cover for seat belt end fitting and remove. | ||
| Fig 2 | |||
| 6 | Release seat belt end fitting. | AR91.40-P-1030-02S | |
| Model 223 with code Z07 (B7 armoring on special protection version) except code 562 (Driver seat belt buckle with integrated tensioning function) |
|||
| Model 223 with code 562 (Driver seat belt buckle with integrated tensioning function) with code Z07 (B7 armoring on special protection version) |
AR91.40-P-1030-02SA | ||
| 7 | Remove cover (5). | Fig 1 | |
| 8 | Remove screw (6). | ||
| 9 | Unclip upper B-pillar trim (1) and extend to the roof lining. | Upper B-pillar trim (1) and lower B-pillar trim (2) can otherwise detach. |
|
| Fig 1 | |||
| 10 | Guide seat belt through the opening on the top of the upper B-pillar trim (1). | ||
| 11 | Unclip lower B-pillar trim (2) and extend upward. | If the lower B-pillar trim (2) is removed. | |
| Fig 1 | |||
| 12 | Install in the reverse order. |
