Remove/Install Stowage Compartment In Rear - AR68.20-P-2500S
Model 223
with code 223 (Electric backrest adjustment and head restraints)
except code 224 (Individual rear seats)
except code Z07 (B7 armoring on special protection version)
| Remove/install | |||
| 1 | Remove armrest. | AR91.12-P-1744S | |
| 2 | Remove center trim strip behind rear seat. | AR68.30-P-1460S | |
| 3 | Remove center head restraint in rear passenger compartment. | AR91.16-P-1770SA | |
| 4 | Remove screws (2). | *BA91.12-P-1005-03L | |

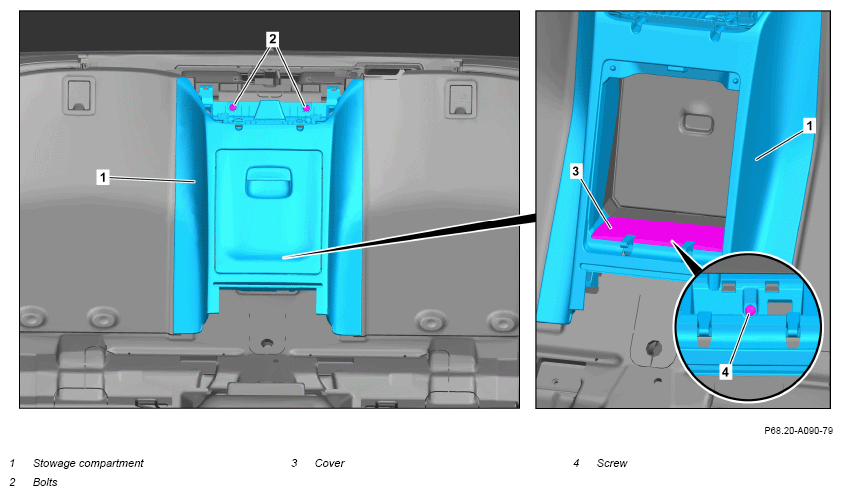

| 5 | Open cover of stowage compartment (1), unclip cover (3) at rear upward and remove. | Fig 1 | |
| 6 | Remove screw (4). | ||
| 7 | Remove stowage compartment (1). | ||
| 8 | Install in the reverse order. |
REAR SEATS
| Number | Designation | Model 223 except code Z07 (B7 armoring on special protection version) |
|
|---|---|---|---|
| BA91.12-P-1005-03L | Screw, stowage compartment in rear passenger compartment to rear panel | Nm | 10 |
