Remove/Install Roller Sun Blind In Rear - AR68.50-P-0002SG
Model 223
with code Z07 (B7 armoring on special protection version)

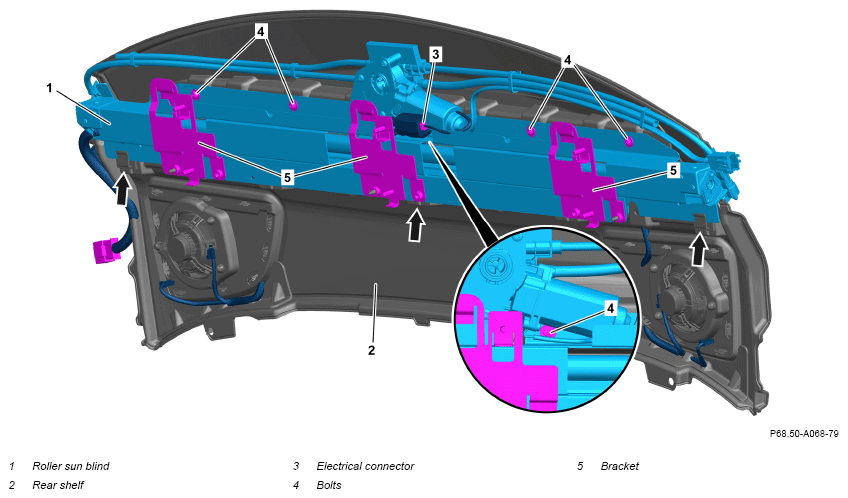

| Remove/install | |||
| 1 | Remove rear shelf (2). | AR68.30-P-4581SG | |
| 2 | Release and disconnect electrical connector (3). | ||
| 3 | Remove screws (4). | ||
| 4 | Extend roller sunblind (1) at rear shelf (2) (arrows) and remove. | ||
| 5 | Remove brackets (5) from roller sunblind (1). | If roller sunblind (1) will be replaced. | |
| 6 | Install in the reverse order. |
