Remove/Install Rear Shelf - AR68.30-P-4581S
Model 223
except code Z07 (B7 armoring on special protection version)

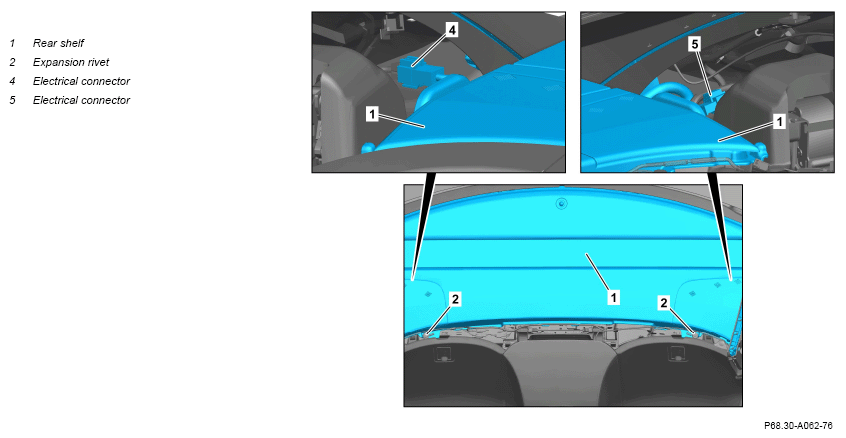

Shown with code 540 (electric roller blind for rear window)
Shown with code 540 (electric roller blind for rear window)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove trim from C-pillar. | AR68.30-P-4490S | |
| 2 | Remove seat backrest in rear. | Model 223 with code 223 (Electric backrest adjustment and head restraints) except code 224 (Rear individual seat design) except code Z07 (B7 armoring on special protection version) Model 223 with code 223 (Electric backrest adjustment and head restraints) with code 224 (Rear individual seat design) except code Z07 (B7 armoring on special protection version) |
AR91.12-P-1713SA |
| Model 223 except code 223 (Electric backrest adjustment and head restraints) except code 224 (Rear individual seat design) except code Z07 (B7 armoring on special protection version) |
AR91.12-P-1713S | ||
| 3 | Remove armrest at seat backrest. | Model 223 except code 223 (Electric backrest adjustment and head restraints) except code 224 (Rear individual seat design) except code Z07 (B7 armoring on special protection version) |
|
| AR91.12-P-1744S | |||
| 4 | Remove trim element behind rear seat. | Model 223 with code 223 (Electric backrest adjustment and head restraints) except code 224 (Rear individual seat design) except code Z07 (B7 armoring on special protection version) Model 223 with code 223 (Electric backrest adjustment and head restraints) with code 224 (Rear individual seat design) except code Z07 (B7 armoring on special protection version) |
|
| AR68.30-P-1460S | |||
| 5 | Remove side trims in rear passenger compartment. | Model 223 except code 223 (Electric backrest adjustment and head restraints) except code 224 (Rear individual seat design) except code Z07 (B7 armoring on special protection version) |
|
| AR68.30-P-4780S | |||
| 6 | Remove expansion rivets (2) at rear shelf (1). | ||

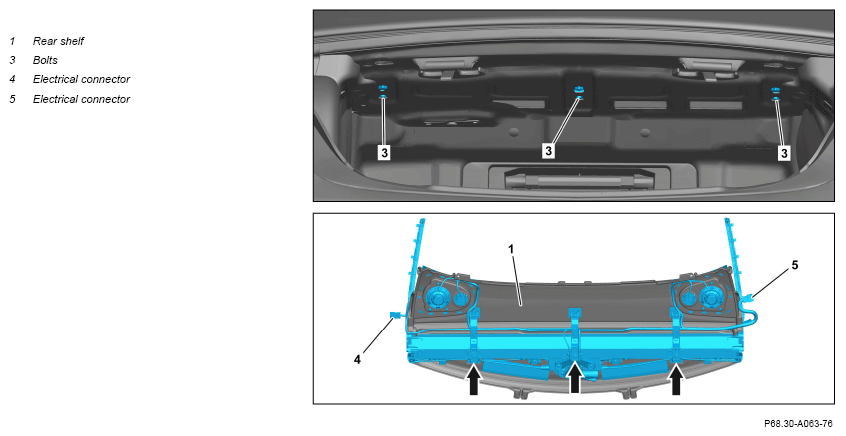

| 7 | Release screws (3) in trunk. | ||
| 8 | Disconnect electrical connection (4). | Model 223 with code 540 (Electric roller blind for rear window) except code Z07 (B7 armoring on special protection version) |
|
| 9 | Disconnect electrical connectors (5). | ||
| 10 | Extend rear shelf (1) and remove upwards. | ||
| 11 | Install in the reverse order. |
