Remove/Install Floor Covering In Rear Passenger Compartment - AR68.80-P-0003S
Model 223
MODIFICATION NOTES
| 14.10.2020 | Check for correct seat of condensation drain hoses at rear air-conditioner housing and at body opening, added | Operation step 9 |
Shown except code 224 (Design individual rear seat system)
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Remove floor mats (2) in rear passenger compartment. | ||

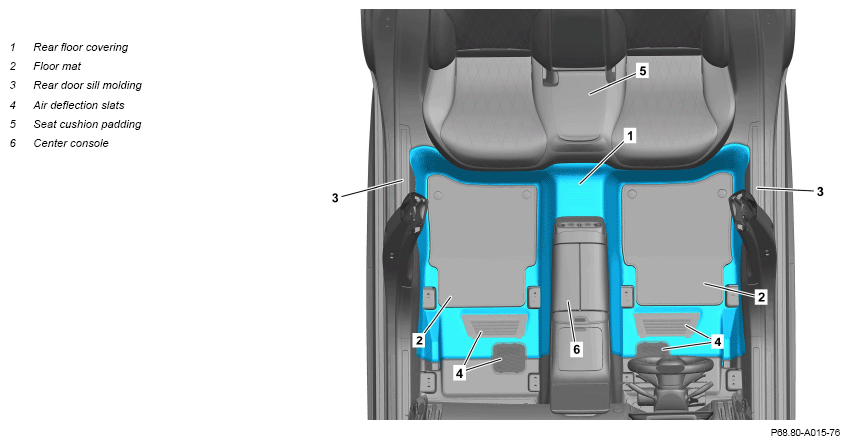

| 2 | Remove rear door sills (3). | Fig 1 | |
| 3 | Remove front seats. | AR91.10-P-1000S | |
| 4 | Remove air deflection slats (4). | Fig 1 | |
| 5 | Remove rear seat cushion padding (5). | AR91.12-P-1023S | |
| Model 223 with code 223 (Electric backrest adjustment and head restraints) except code 224 (Rear individual seat design) |
|||
| Model 223 with code 223 (Electric backrest adjustment and head restraints) except code 224 (Rear individual seat design) Model 223 with code 223 (Electric backrest adjustment and head restraints) with code 224 (Rear individual seat design) |
AR91.12-P-1022SA | ||
| Model 223 except code 223 (Electric backrest adjustment and head restraints) except code 224 (Rear individual seat design) |
AR91.12-P-1022S | ||
| 6 | Remove center console (6). | AR68.20-P-2000S | |
| 7 | Place electrical wiring harnesses in area of rear floor covering (1) to one side. | ||
| 8 | Guide out rear floor covering (1) under B-pillar trims and remove from vehicle. | Fig 1 | |
| 9 | Check for correct seat of condensation drain hoses at rear air-conditioner housing and at body opening. | Model 223 with code 582 (Air conditioning, rear) |
AR83.30-P-5200-03A |
| 10 | Install in the reverse order |
