Retrofit Easy-Pack Trunk Comfort Box - AZ68.50-P-0012S
Model 223.0/1/9
except code 308 (Refrigerated compartment in rear passenger compartment)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove | |||

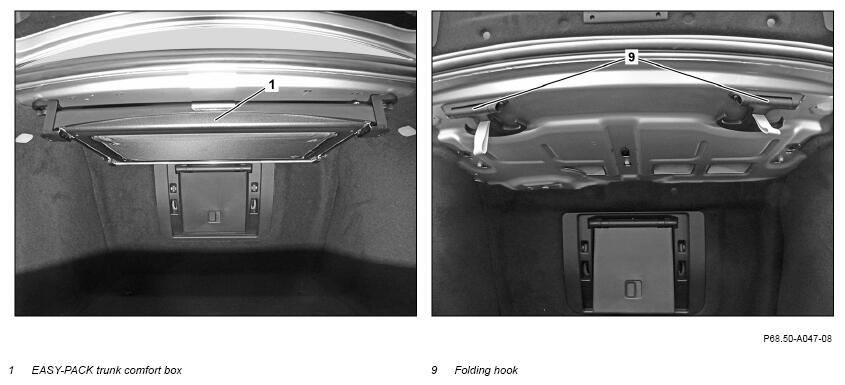

| 1 | Remove folding hooks (9). | ||
| Install | |||
| 2 | Install EASY-PACK trunk box (1). | AZ68.50-P-0012-01S | |
| Update Vehicle Documentation (VeDoc) | |||
| 3 | Enter special equipment into online vehicle data card. | ||
| 4 | Attach "EASY-PACK trunk box retrofitted according to AZ68.50-P-0012S" note to design group 68 under field organization texts. | ||
| Hand over to customer | |||
| 5 | The assembly instructions included in the EASY-PACK trunk comfort box (1) parts kit must be handed to the customer. |
PARTS ORDERING NOTE
| Part no. | Designation | Quantity |
|---|---|---|
| KG 98 (see XENTRY Portal Parts Information) | Parts kit for EASY-PACK trunk comfort box | 1 |
