Retrofit Bracket For Easy-Pack Trunk Comfort Box - AZ68.50-P-0012-01S

Model 223

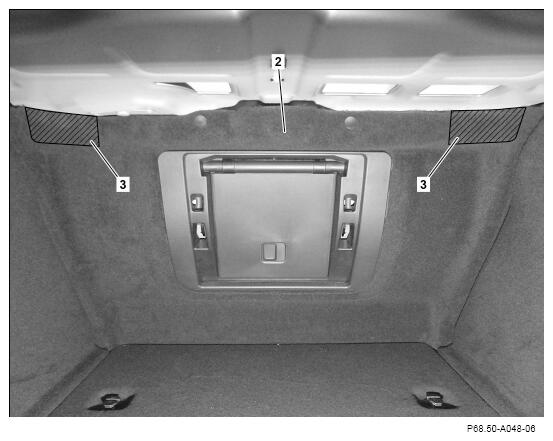

1. Pull rear panel trim (2) in area of perforation back and tear out parts (3) along perforation.

   The parts torn out (3) can be discarded.

   Courtesy of MERCEDES-BENZ USA

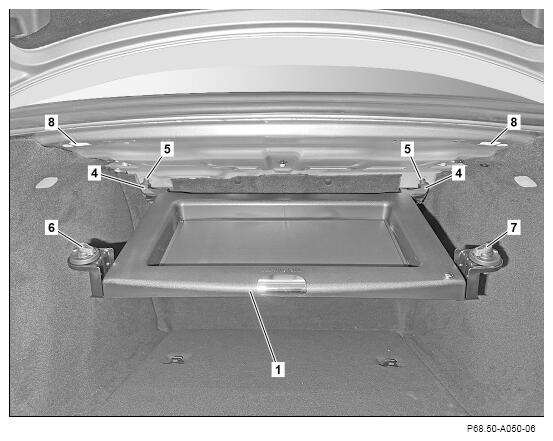

2. Insert brackets (4) into openings (5) on rear trunk wall.
3. Raise EASY-PACK trunk box (1) upward and insert twist bolts (6, 7) into openings (8).
4. Lock twist bolts (6, 7) by turning 90°.

   Turn twist bolt (6) counterclockwise.

   Turn twist bolt (7) clockwise.

   Courtesy of MERCEDES-BENZ USA
