Replace Night View Assist Camera Lens - AR54.30-P-2999LF

Model 217, 222, 231 with code 610 (Night view assist)

Shown on model 222

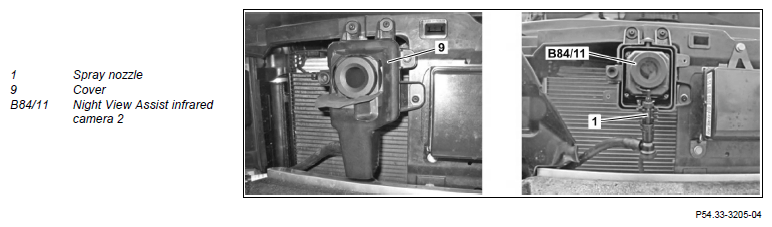

Fig 1: Night View Assist Camera Lens Component Location - Model 217 With Code 610 (Shown On Model 222)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Remove/install
1.1	Remove radiator grille	Model 222 with code 610 (Night view assist)	AR88.40-P-4001LF
1.2	Remove Night View Assist infrared camera 2 (B84/11)	Model 231 with code 610 (Night view assist) : Install camera lens (8) parallel to front of vehicle.	AR54.30-P-3008LFA
1.3	Remove front bumper	Model 217 with code 610 (Night view assist)	AR88.20-P-2000LC
2	Remove cover (9)	Model 222 with code 610 (Night view assist)
3	Unclip spray nozzle (1) and place to one side	Model 217, 222 with code 610 (Night view assist)
		: Check the spray pattern of the spray nozzle (1) using the diagnostic system.	AD00.00-P-2000-04B
4	Clean surface around Night View Assist infrared camera 2 (B84/11)

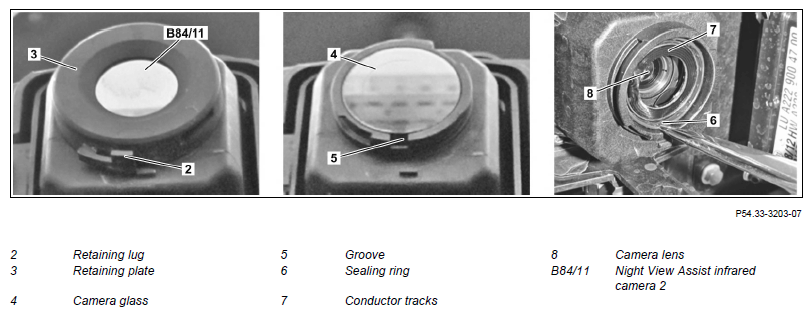

5	Release retaining lug (2), turn retaining plate (3) counterclockwise and take off	: Replace retaining plate (3). Repair kit for Night View camera IR	*BR00.45-Z-1019-08A
6	Pry out camera glass (4) at the groove (5) carefully	Wear gloves. Otherwise the Night View Assist infrared camera 2 (B84/11) can get damaged due to particles of dust or grease. : Pay attention to the direction of installation of the camera glass (4). The protective foil must face toward the outside. Remove the protective foil. : Replace the camera glass (4); install making sure that it is free of dust and grease. Repair kit for Night View camera IR	*BR00.45-Z-1019-08A
7	Remove sealing ring (6) using a suitable tool (e.g. tweezers)	Do not touch the conductor tracks (7) or the camera lens (8). The Night View Assist infrared camera 2 (B84/11) can get damaged otherwise. : Replace sealing ring (6). Repair kit for Night View camera IR	*BR00.45-Z-1019-08A
	Clean
8	Clean contact surface of sealing ring (6)	With cleaning swabs provided. Repair kit for Night View camera IR	*BR00.45-Z-1019-08A
		Windshield washer fluid	*BR00.45-Z-1077-04A
9	Install in the reverse order
