Remove/Install Start/Stop Button - AR54.25-P-4001LFN
Model 217
as of model year 2018
Shown on removed instrument panel

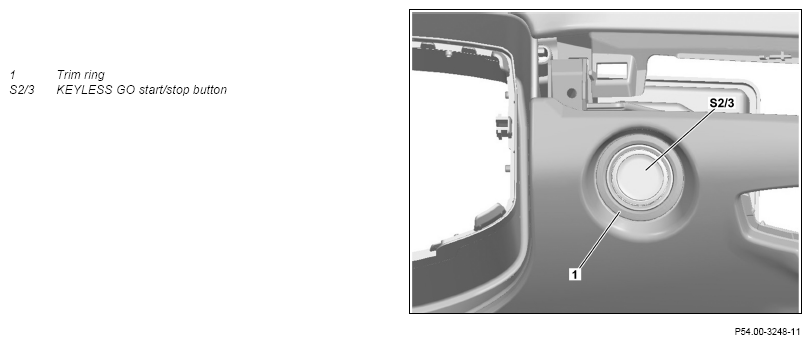

Fig 1: Start/Stop Button Component Location - Model 217 As Of Model Year 2018 (Shown On Removed Instrument Panel)
Shown on removed instrument panel
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Disconnect battery ground line | AR54.10-P-0003LF | |
| 2 | Remove dashboard | AR68.10-P-1000LC | |
| 3 | Unclip trim ring (1) | ||

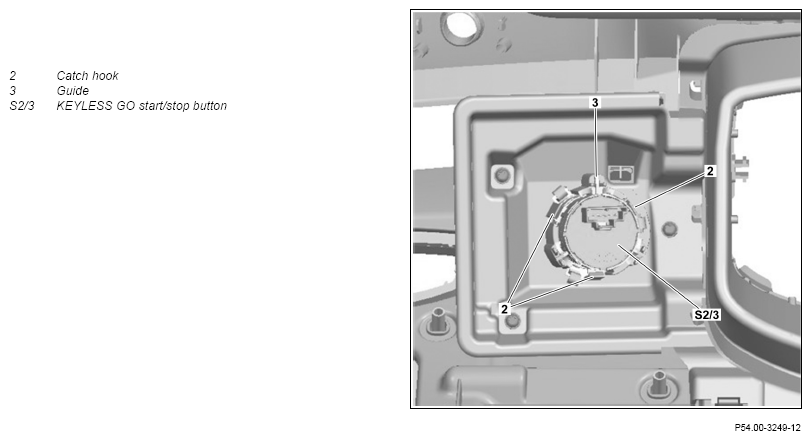

| 4 | Release catch hooks (2) | ||
| 5 | Remove KEYLESS-GO start/stop button (S2/3) towards the rear | ||
| 6 | Install in the reverse order |
