Remove/Install Rear Control Unit - AR54.21-P-2009LCA
Model 217.4
Shown: model 217.482
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Commission rear control unit | When replacing rear control unit. | |
| AD00.00-P-2000-04B | |||
| 2 | Unclip rear fuse and relay module and place to one side with lines still connected | AR54.15-P-0001LF | |

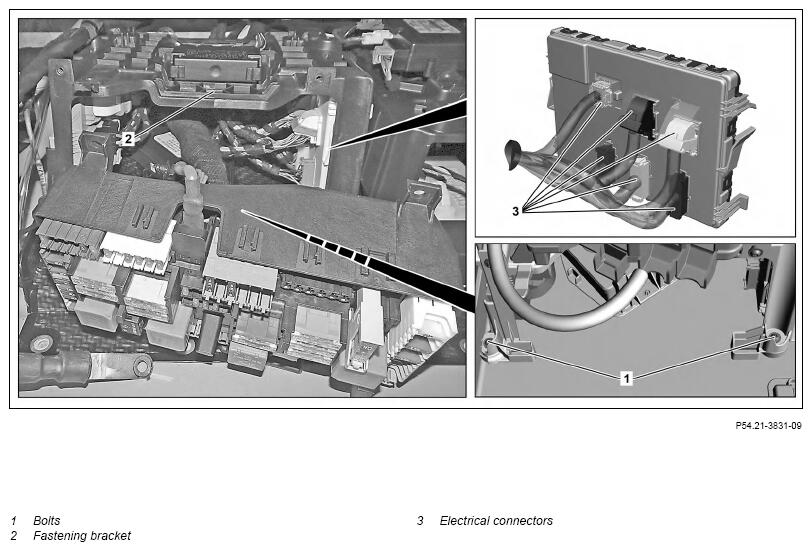

| 3 | Remove screw/bolt (1) | ||
| 4 | Push mounting support (2) upwards, release and unlatch rear control unit from mounting support (2) | ||
| 5 | Release and disconnect electrical connectors (3) on rear control unit | ||
| 6 | Remove rear control unit | ||
| 7 | Install in the reverse order |
