Remove/Install Rear Control Unit - AR54.21-P-2009LC
Model 217.3
MODIFICATION NOTES
| 23.02.2016 | "Perform initial startup of rear control unit (N22/6)" added. | Operation step 1 |

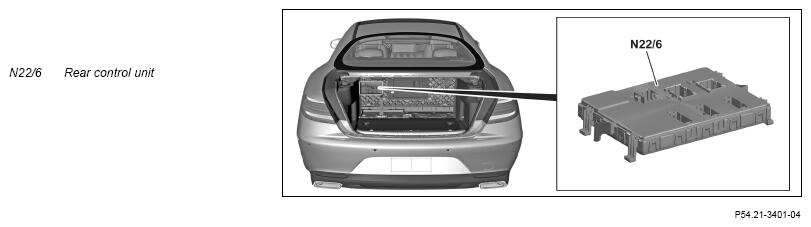

Shown: model 217.364
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform initial startup of rear control unit (N22/6) | When replacing the rear control unit (N22/6). | |
| AD00.00-P-2000-04B | |||
| 2 | Remove front trunk trim | AR68.30-P-4600LC | |
| 3 | Release and disconnect electrical connection from rear control unit (N22/6) | ||
| 4 | Unclip and remove rear control unit (N22/6) | ||
| 5 | Install in the reverse order |
