Remove/Install Radar Sensors Control Unit - AR54.65-P-0040LCA
Model 217.4
with code P20 (Driving Assistance package Plus)
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Commission radar sensors control unit (1) | When replacing radar sensors control unit (1). | |
| AD00.00-P-2000-04B | |||
| 2.1 | Remove tuner unit | Model 217.4 up to model year 2018 with code 536 (SIRIUS satellite radio) with code P20 (Driving Assistance package Plus) Model 217.4 up to model year 2018 with code 537 (Digital radio (DAB)) with code P20 (Driving Assistance package Plus) Model 217.4 up to model year 2018 with code 865 (TV tuner) with code P20 (Driving Assistance package Plus) |
AR82.60-P-2002LF |
| 2.2 | Remove TV tuner | Model 217.4 as of model year 2018 with code 498 (Japanese version) with code 865 (TV tuner) with code P20 (Driving Assistance package Plus) |
AR82.85-P-7366LFN |
| 2.3 | Remove TV tuner | Model 217.4 as of model year 2018 with code 865 (TV tuner) with code P20 (Driving Assistance package Plus) except code 498 (Japanese version) |
AR82.85-P-7366LCM |

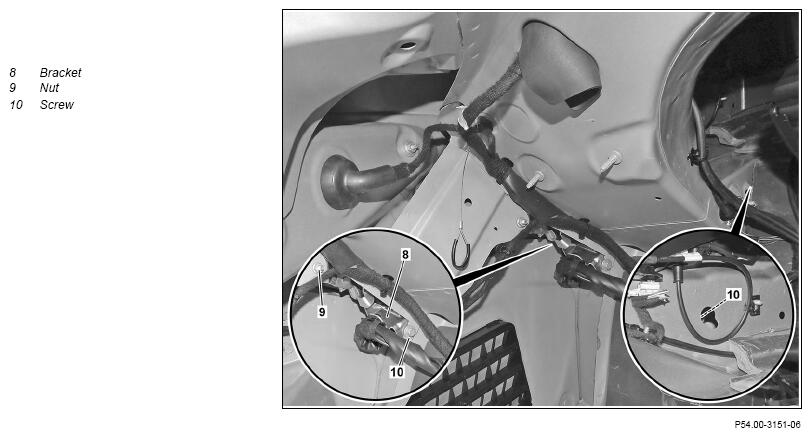

| 3 | Remove screw/bolts (10) | ||
| 4 | unscrew nut (9) | ||
| 5 | Pull holder (8) out backwards | ||

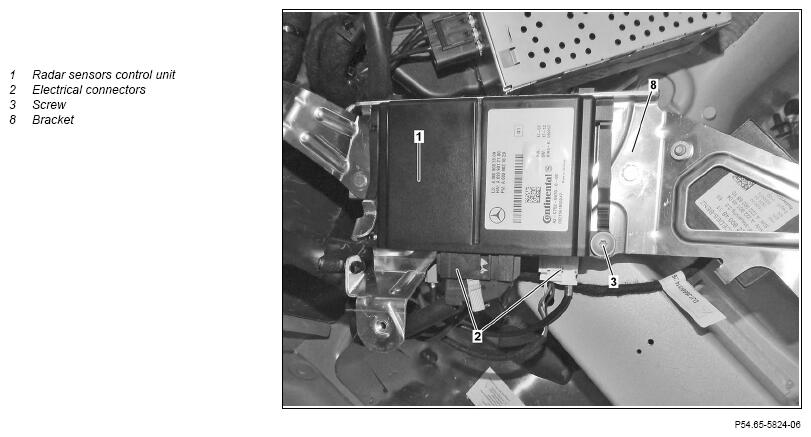

| 6 | Separate electrical connectors (2) | ||
| 7 | Unscrew bolt (3) | ||
| 8 | Unclip radar sensors control unit (1) from holder (8) and remove | ||
| 9 | Install in the reverse order |
