Remove/Install TV Tuner - AR82.85-P-7366LCM
Model 217.4
as of model year 2018
with code 865 (digital TV)
except code 498 (Japanese version)
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Topical note | Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Carry out initial startup of TV tuner control unit (N143) | When replacing the TV tuner control unit (N143). | |
| AD00.00-P-2000-04B | |||
| 2 | Remove luggage compartment trim on left side | AR68.30-P-4800LCA | |

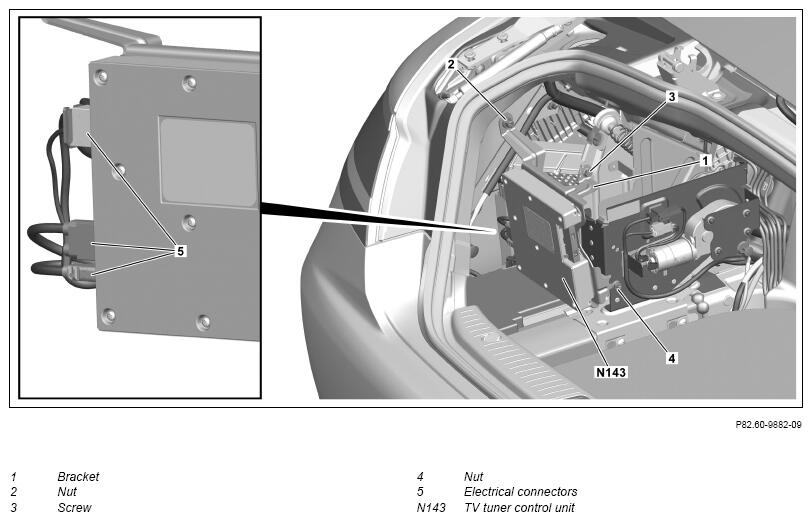

| 3 | Remove screw (3) | ||
| 4 | Unscrew nut (2, 4) | ||
| 5 | Pull bracket (1) towards the rear and disconnect the electrical connectors (5) | ||

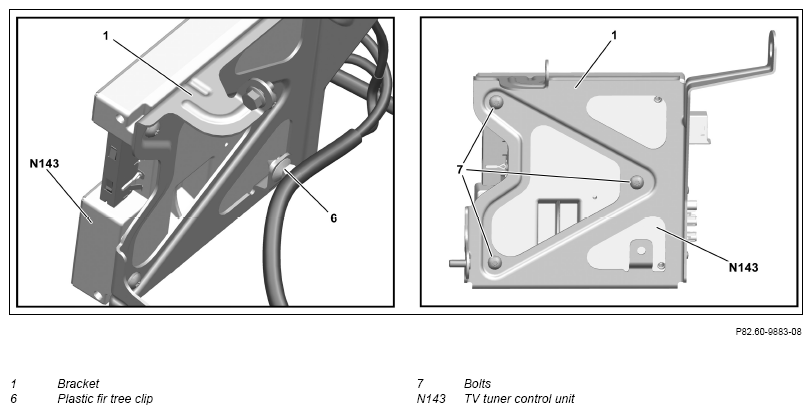

| 6 | Unclip the plastic fir tree clip (6) from the bracket (1) | Fig 1 | |
| 7 | Remove TV tuner control unit (N143) with bracket (1) | ||
| 8 | Loosen screws/bolts (7) and remove the TV tuner control unit (N143) from the bracket (1) | When replacing the TV tuner control unit (N143). | |
| 9 | Install in reverse order |
