Remove/Install Radar Sensors Control Unit - AR54.65-P-0040LC
Model 217.3
with code P20 (Driving Assistance package)
MODIFICATION NOTES
| 18.5.15 | Repair method modified. |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove left luggage compartment trim | AR68.30-P-4600LC | |

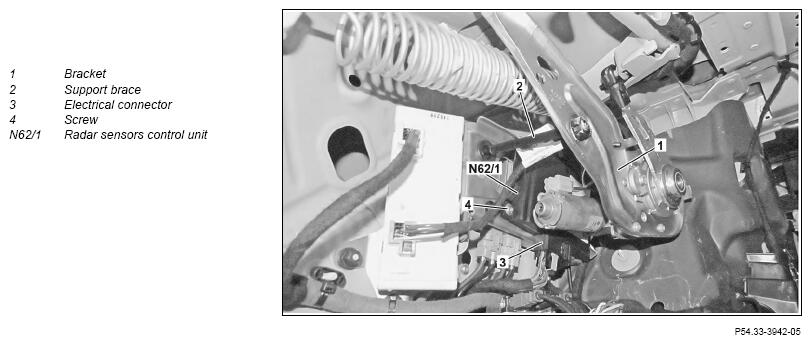

| 2 | Carefully unclip bracket (1) from support (2) | ||
| 3 | Disconnect electrical connector (3) | ||
| 4 | Remove screw/bolt (4) | ||
| 5 | Remove radar sensors control unit (N62/1) from bracket | ||
| 6 | Install in the reverse order | ||
| 7 | Perform initial startup of radar sensors control unit (N62/1) | ||
| AD00.00-P-2000-04B |
