Remove/Install Parktronic System (PTS) Control Unit - AR54.65-P-0006LFM
Model 217.3
as of model year 2018
with code 235 (Active Parking Assist with PARKTRONIC)

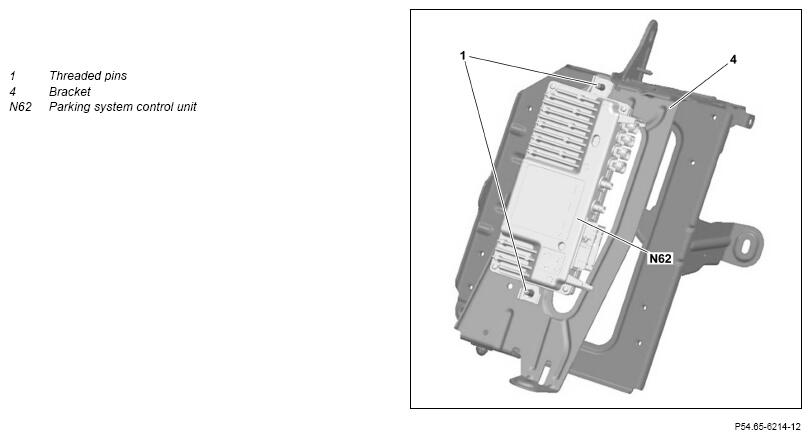

Shown on removed holder
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Topical note | Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Commission parking system control unit (N62) | When replacing parking system control unit (N62). | |
| AD00.00-P-2000-04B | |||
| 2 | Remove luggage compartment trim on left side | AR68.30-P-4600LC | |

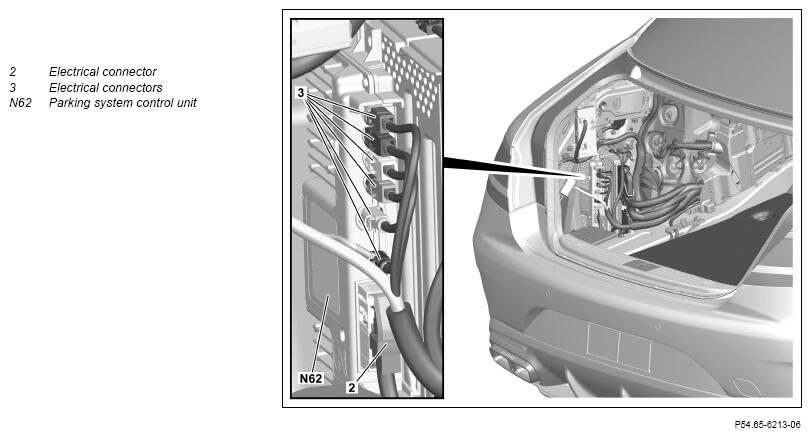

| 3 | Disconnect electrical connection (2) | ||
| 4 | Detach electrical connections (3) | ||
| 5 | Unscrew nuts from threaded pins (1) | ||
| 6 | Take parking system control unit (N62) out of holder (4) and remove from vehicle | ||
| 7 | Install in the reverse order |
