Remove/Install Long-Range Infrared Camera For Night View Assist - AR54.30-P-3008LC

MODEL 217

with CODE 610 (Night View Assist)

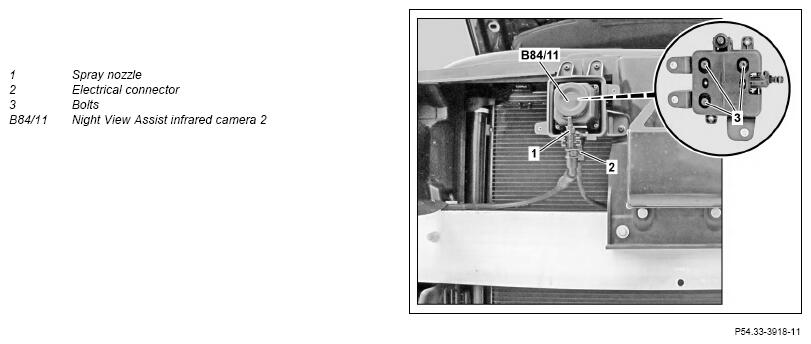

Fig 1: Night View Assist Long-Range Infrared Camera - Model 217 With Code 610

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Switch off ignition and remove transmitter key
2	Remove front bumper		AR88.20-P-2000LC
3	Unclip spray nozzle (1) and place to one side
		: Check the spray pattern of the spray nozzle (1) using the diagnostic system.	AD00.00-P-2000-04B
4	Disconnect electrical connector (2)
5	Pull out screws/bolts (3) and remove Night View Assist infrared camera 2 (B84/11)	: The camera lens must be installed parallel to the front of the vehicle.
6	Install in the reverse order
7	Calibrate Night View Assist infrared camera 2 (B84/11) and Night View Assist camera (B84) using diagnostic system
		When the Night View Assist infrared camera 2 (B84/11) is calibrated, the Night View Assist camera (B84) must also be calibrated. The calibration target for the Night View Assist is required for calibration of the Night View Assist camera (B84) and Night View Assist infrared camera 2 (B84/11).	AD00.00-P-2000-04B
		Calibration device	Fig 2

Fig 2: Identifying Calibration Device (000 589 02 21 00)

Courtesy of MERCEDES-BENZ USA
