Remove/Install Backup Camera Control Unit - AR54.65-P-0025LCA
Model 217.4
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Initial startup of reversing camera control unit (4) | When replacing reversing camera control unit (4). | |
| AD00.00-P-2000-04B | |||
| 2.1 | Remove tuner unit | Model 217.4 up to model year 2018 with code 536 (SIRIUS satellite radio) Model 217.4 up to model year 2018 with code 537 (Digital radio (DAB)) Model 217.4 up to model year 2018 with code 865 (TV tuner) |
AR82.60-P-2002LF |
| 2.2 | Remove TV tuner | Model 217.4 as of model year 2018 with code 498 (Japanese version) with code 865 (TV tuner) |
AR82.85-P-7366LFN |
| 2.3 | Remove TV tuner | Model 217.4 as of model year 2018 with code 865 (TV tuner) except code 498 (Japanese version) |
AR82.85-P-7366LCM |

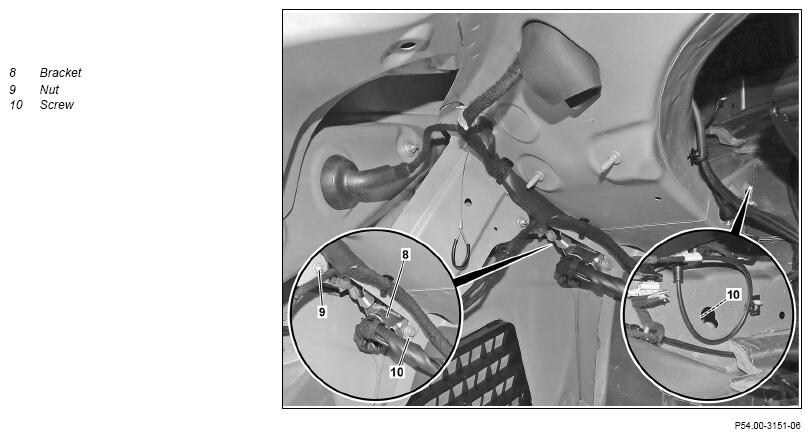

| 3 | Remove screw/bolts (10) | ||
| 4 | unscrew nut (9) | ||
| 5 | Pull holder (8) out backwards | ||

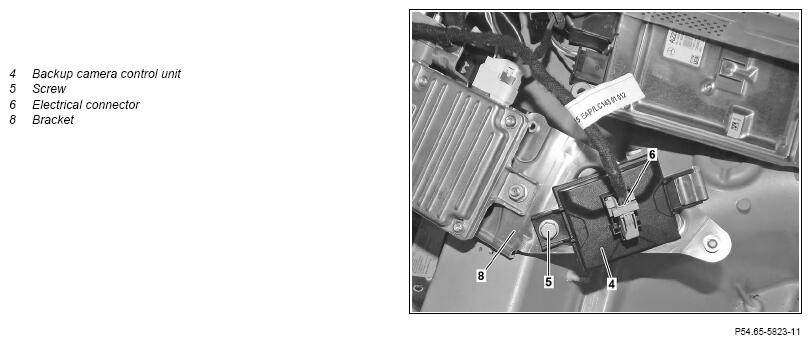

| 6 | Remove bolt (5) | ||
| 7 | Unclip reversing camera control unit (4) from holder (8) | ||
| 8 | Disconnect electrical connector (6) and remove reversing camera control unit (4) | ||
| 9 | Install in the reverse order |
