Remove/Install 360° Camera Control Unit - AR54.30-P-3004LCA
Model 217.4
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Commission 360° Camera control unit (1) | When replacing 360° Camera control unit (1). | |
| AD00.00-P-2000-04B | |||
| 2.1 | Remove tuner unit | Model 217.4 up to model year 2018 with code 536 (SIRIUS satellite radio) Model 217.4 up to model year 2018 with code 537 (Digital radio (DAB)) Model 217.4 up to model year 2018 with code 865 (TV tuner) |
AR82.60-P-2002LF |
| 2.2 | Remove TV tuner | Model 217.4 as of model year 2018 with code 498 (Japanese version) with code 865 (TV tuner) |
AR82.85-P-7366LFN |
| 2.3 | Remove TV tuner | Model 217.4 as of model year 2018 with code 865 (TV tuner) except code 498 (Japanese version) |
AR82.85-P-7366LCM |

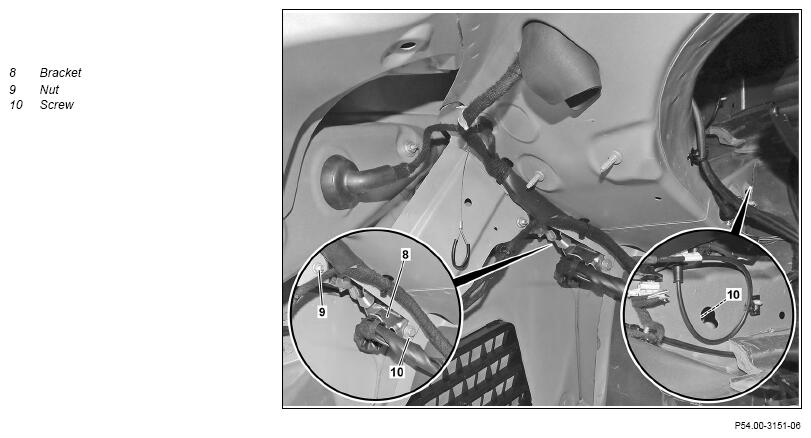

| 3 | Remove screw/bolts (10) | ||
| 4 | unscrew nut (9) | ||
| 5 | Pull holder (8) out backwards | ||
| 6 | Unscrew nuts (3) | ||

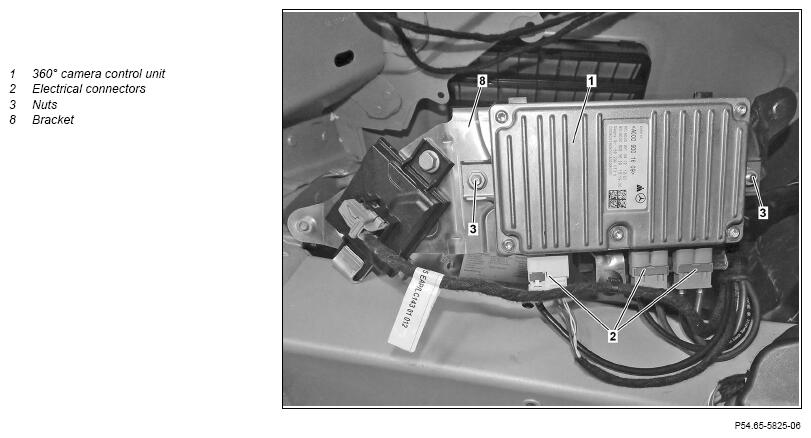

| 7 | Disconnect electrical connections (2) and remove 360° camera control unit (1) | ||
| 8 | Install in the reverse order |
