Remove/Install Battery - AR54.10-P-0005LC
Model 217.3

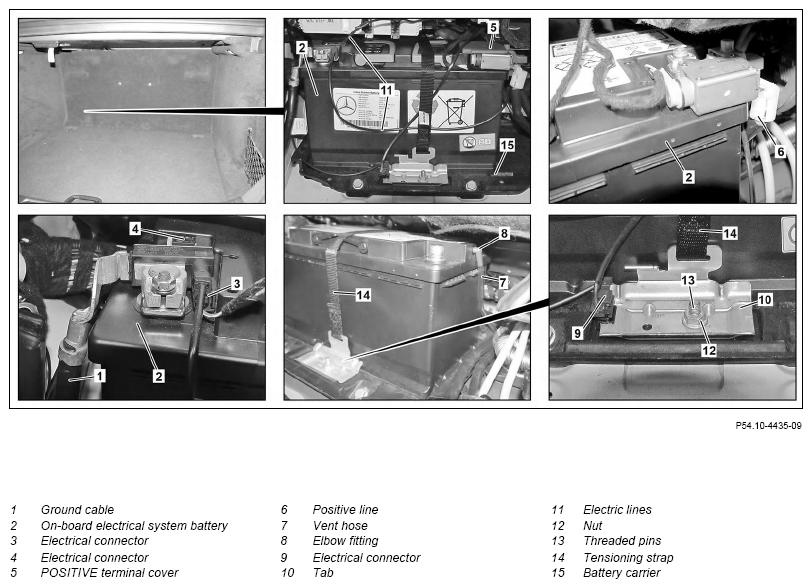

Shown on model 217.37
| Risk of fire /risk of explosion due to short circuit and escaping oxyhydrogen gas. Risk of (burn) injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte/mist, short circuit and arcing. Risk of poisoning caused by swallowing battery electrolyte or absorption of lead through the skin or body orifices. Risk of death due to voltage U >= 30 V AC and U >= 60 V DC. | No fires, sparks, open flames, or smoking. Wear acid-resistant gloves, clothing, and glasses. Pour battery acid only into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Notice | General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment | AH00.00-Z-0300-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on battery | AH54.10-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Print out checklist for transport safety of on-board electrical system battery (2). | Model 217.3 with code U98 (LITHIUM-ION STARTER BATTERY (LISB)) When replacing the on-board electrical system battery (2). |
|
| Transport safety checklist for starter battery, form | OF54.10-P-3000-13A | ||
| 2 | Answer questions on installed on-board electrical system battery (2) based on checklist for transport safety. | Model 217.3 with code U98 (LITHIUM-ION STARTER BATTERY (LISB)) When replacing the on-board electrical system battery (2). |
|
| 3 | Switch off all electrical consumers. | Switch off all electrical consumers. Otherwise, electrical consumers will be damaged when disconnecting/connecting the ground line (1). |
|
| 4 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 5 | Remove front trunk lining. | AR68.30-P-4600LC | |
| 6 | Disconnect ground line (1) from on-board electrical system battery (2). | *BA54.10-P-1003-01J | |
| 7 | Confirm change of on-board electrical system battery (G1) using diagnosis system in signal acquisition and actuation module under Actuation menu item. | Model 217.3 as of model year 2016 except code U98 (LITHIUM-ION STARTER BATTERY (LISB)) When replacing the on-board electrical system battery (2). |
|
| AD00.00-P-2000-04B | |||
| 8 | Release and disconnect electrical connection (3). | ||
| 9 | Release and disconnect electrical connector (4). | Model 217.3 with code U98 (LITHIUM-ION STARTER BATTERY (LISB)) |
|
| 10 | Remove POSITIVE terminal cover (5). | ||
| 11 | Disconnect positive line (6) from on-board electrical system battery (2). | *BA54.10-P-1003-01J | |
| 12 | Detach vent hose (7) from elbow fitting (8). | Make sure that the vent hose (7) is seated and routed correctly. Otherwise damage may occur because of leaking battery acid vapor. |
|
| 13 | Unclip, release and disconnect electrical connector (9) at shackle (10). | ||
| 14 | Place electric lines (11) to one side. | ||
| 15 | Remove nut (12). | *BA54.10-P-1002-01J | |
| 16 | Remove shackle (10) from threaded pin (13). | ||
| 17 | Remove on-board electrical system battery (2) from battery carrier (15). | Carefully remove the on-board electrical system battery (2) from the battery carrier (15). Otherwise the threaded pin (13) can damage the on-board electrical system battery (2). |
|
| 18 | Install in the reverse order. | ||
| 19 | Answer questions on removed on-board electrical system battery (2) based on checklist for transport safety. | Model 217.3 with code U98 (LITHIUM-ION STARTER BATTERY (LISB)) When replacing the on-board electrical system battery (2). |
BATTERY
| Number | Designation | Model 217 | |
|---|---|---|---|
| BA54.10-P-1002-01J | Nut, tensioning strap to battery frame | Nm | 23 |
BATTERY
| Number | Designation | Model 217 | |
|---|---|---|---|
| BA54.10-P-1003-01J | Nut, charging cable to negative terminal/positive terminal of on-board electrical system battery | Nm | 6 |
