Remove/Install Telephone Antenna Splitter - AR82.70-P-8956LFM
Model 217.3, 222
as of model year 2018
with code 379 (Telephone module with Bluetooth® (SAP profile))
with code 899 (Multifunction telephony)

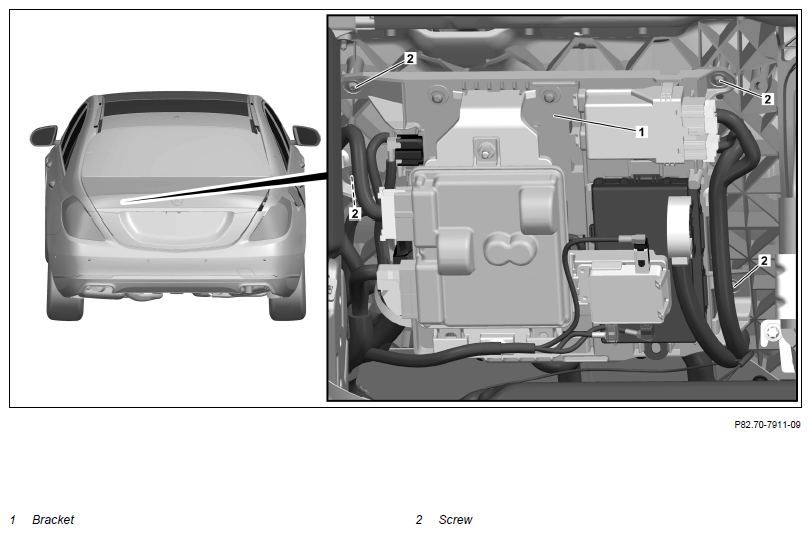

Shown on model 222 from model year 2018

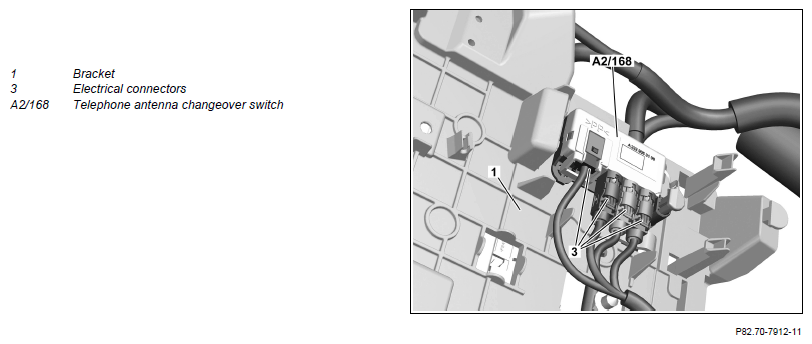

Shown on model 222 from model year 2018
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Remove partition wall panel | Model 222 as of model year 2018 with code 379 (Telephone module with Bluetooth® (SAP profile)) with code 899 (Multifunction telephony) |
AR68.30-P-4600LF |
| Model 217.3 as of model year 2018 with code 379 (Telephone module with Bluetooth® (SAP profile)) with code 899 (Multifunction telephony) |
AR68.30-P-4600LC | ||
| 3 | Remove screws (2) | ||
| 4 | Move the bracket (1) until the telephone switch (A2/168) is accessible | ||
| 5 | Detach electrical connectors (3) | ||
| 6 | Disassemble and remove the telephone aerial switch (A2/168) from the bracket (1) | ||
| 7 | Install in the reverse order |
