Remove/Install Cover Below Instrument Panel (Right) - AR68.10-P-1520LF
MODEL 217, 222.0/1/9

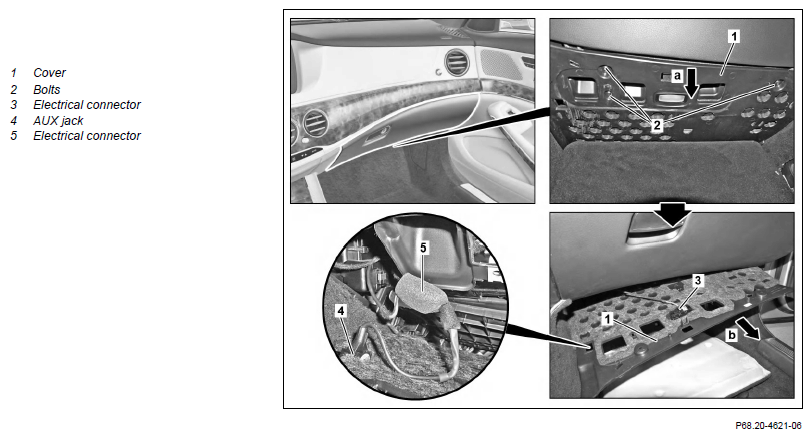

Shown on model 222
| Remove/install | |||
| 1 | Move front passenger seat to end position toward rear | ||
| 2 | Switch off ignition and remove transmitter key | ||
| 3 | Remove bolts (2) | ||
| 4 | Slide cover (1) downward in direction of arrow (arrow a) in front area and push opposite to direction of travel (arrow b) | ||
| 5 | Disconnect electrical connectors (3, 5) | ||
| 6 | Remove cover (1) out of the footwell | ||
| 7 | Transfer footwell lamp and AUX jack (4) | When replacing cover (1) | |
| 8 | Install in the reverse order |
