Remove/Install Driver Knee Airbag - AR91.60-P-0200LF
Model 217
Model 222
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Adjust driver seat backwards and steering column upwards | ||
| 2 | Switch on ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 3 | Disconnect battery ground line | AR54.10-P-0003LF | |

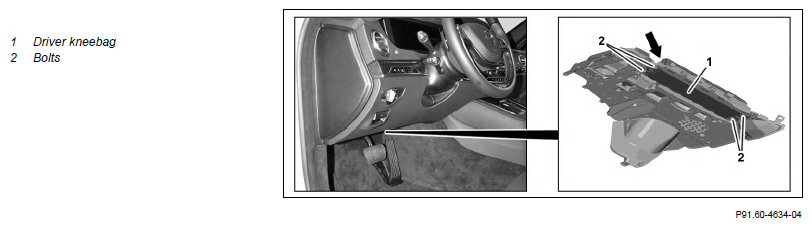

| 4 | Remove screw/bolts (2) | *BA91.60-P-1003-01I | |
| 5 | Remove driver kneebag (1), until the electrical connector (arrow) of the driver kneebag squib is accessible | ||
| 6 | Release and disconnect electrical connector (arrow) from driver kneebag squib | Fig 2 | |
| 7 | Remove driver kneebag (1) | ||
| 8 | Install in the reverse order | ||
| Check | |||
| 9 | Check and erase vehicle fault memory using the diagnostic system | When replacing the driver kneebag (1). | |
| AD00.00-P-2000-04B |
AIRBAG
| Number | Designation | Model 217 | Model 222 | |
|---|---|---|---|---|
| BA91.60-P-1003-01I | Bolt, knee airbag to footwell cover | Nm | 5 | 5 |
