Remove/Install Center Stowage Compartment - AR68.10-P-1620LFM
Model 217.3, 222
as of model year 2018

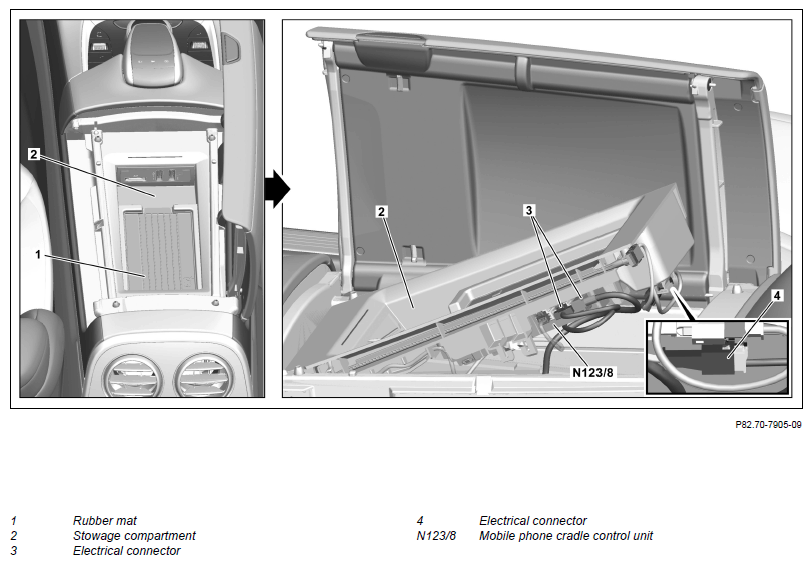

Shown on model 222 with code 582 (Rear air conditioning system) and code 897 (Wireless mobile phone charging)
Shown on model 222 with code 582 (Rear air conditioning system) and code 897 (Wireless mobile phone charging)

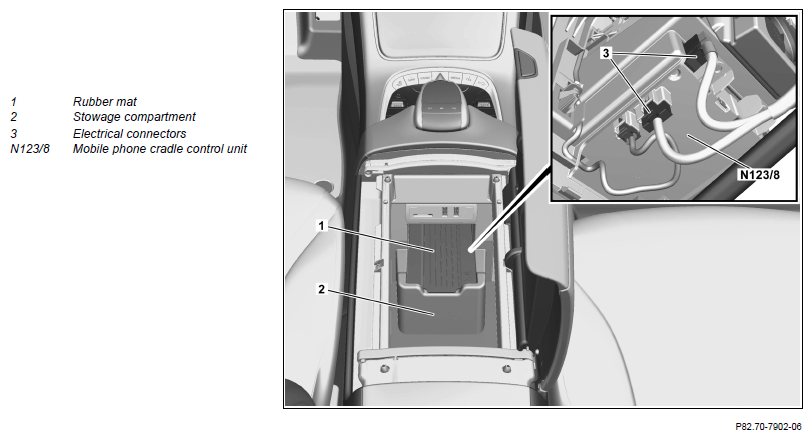

Shown on model 222 except code 582 (Rear air conditioning system) and with code 897 (Wireless mobile phone charging)
| Topical note | Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove multimedia connection unit in front stowage compartment | AR82.60-P-1032LFM | |
| 2 | Remove rubber mat (1) | ||

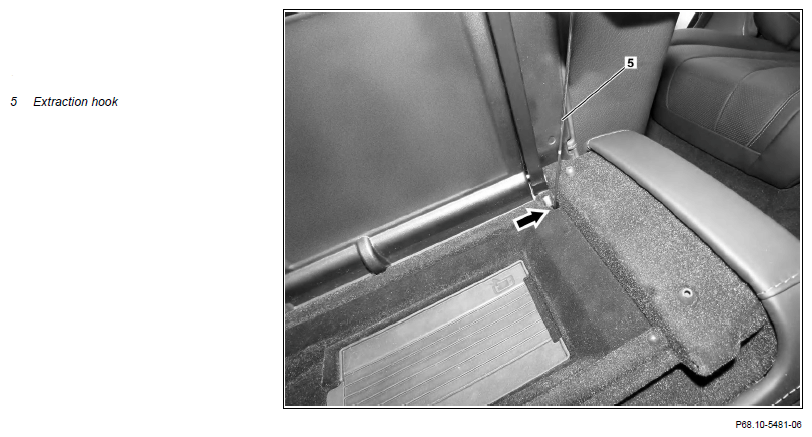

| 3 | Insert extraction hook (5) in opening (arrow) | Model 222 as of model year 2018 with code 582 (Rear air conditioner) |
Fig 2 |
| 4.1 | Unclip stowage compartment (2) using the extraction hook (5) | Model 222 as of model year 2018 with code 582 (Rear air conditioner) |
Fig 2 |
| 4.2 | Unclip stowage compartment (2) | Model 217.3 as of model year 2018 Model 222 as of model year 2018 except code 582 (Rear air conditioner) |
Fig 1 |
| 5 | Release and disconnect electrical connections (3) | Model 217.3, 222 as of model year 2018 with code 897 (Wireless mobile phone charging) Model 217.3, 222 as of model year 2018 with code 899 (Multifunction telephony) |
|
| 6 | Remove chafe protection and release and disconnect electrical connection (4) | Model 222 as of model year 2018 with code 582 (Rear air conditioner) | |
| 7 | Remove stowage compartment (2) | ||
| 8 | Install in the reverse order |
