Remove/Install Refrigerator Box - AR86.61-P-1010LC
Model 217
with code 308 (Refrigerated compartment in rear passenger compartment)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||
| 1 | Open luggage compartment lid | ||

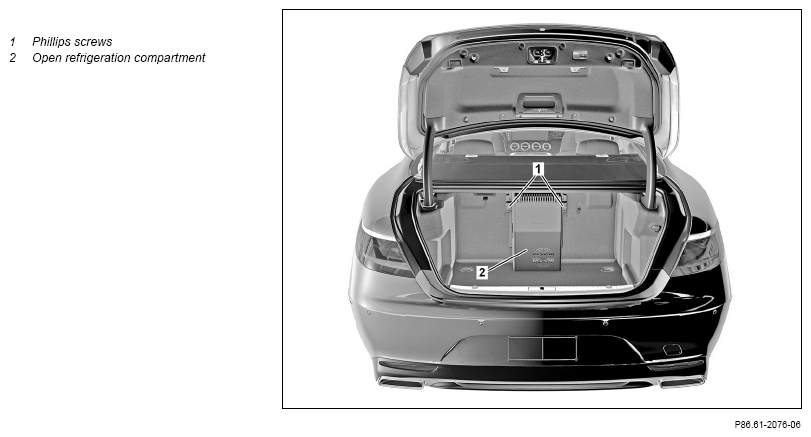

| 2 | Remove Phillips screws (1) | ||
| 3 | Disconnect electrical connector from refrigeration compartment (2) | ||
| 4 | Remove refrigeration compartment (2) | ||
| 5 | Install in the reverse order |
