Remove/Install Transfer Case Temperature Sensor - AR28.19-P-1007MNM
Transmission 725.09 in model 217, 222 with engine 177
with code M005 (Vehicles with 4MATIC/all-wheel drive)
MODIFICATION NOTES
| 27.10.2017 | Temperature sensor to transfer case | BA28.10-P-1012-01G |

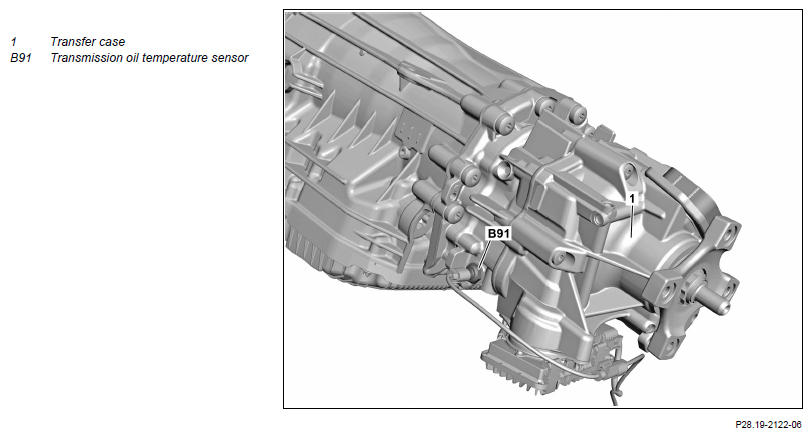

Fig 1: Transfer Case Temperature Sensor Component Location - Transmission 725.09 In Model 217 With Engine 177 (With Code M005)
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove rear engine mount | AR22.10-P-1160MNM | |
| 2 | Drain transmission oil from transfer case (1) | ||
| Transfer case - oil change | AP28.00-P-2801B | ||
| 3 | Release and disconnect electrical connector from transmission oil temperature sensor (B91) | ||
| 4 | Unscrew transmission oil (B91) and seal opening with suitable plug | *BA28.10-P-1012-01G | |
| Fig 2 | |||
| 5 | Install in the reverse order |
COMPLETE TRANSFER CASE
| Number | Designation | Model 205, 213, 217, 218, 222, 223, 238, 253, 257, 290 with transmission 725.0/1 with code M005 (Vehicles with 4MATIC/all-wheel drive) | |
|---|---|---|---|
| BA28.10-P-1012-01G | Temperature sensor to transfer case | Nm | 30 |
