Transfer Case - Oil Change - AP28.00-P-2801B

Model 213 with transmission 725.096 with code 800 (Model year 2020) with code M005 (Vehicles with 4MATIC/all-wheel drive)

Model 213, 253 with transmission 725.096 with code 807 (Model year 2017) with code M005 (Vehicles with 4MATIC/all-wheel drive)

Model 213, 253 with transmission 725.096 with code 808 (Model year 2018) with code M005 (Vehicles with 4MATIC/all-wheel drive)

Model 213, 253 with transmission 725.096 with code 809 (Model year 2019) with code M005 (Vehicles with 4MATIC/all-wheel drive)

Model 217, 222 with transmission 725.09 with code M005 (Vehicles with 4MATIC/all-wheel drive)

Courtesy of MERCEDES-BENZ USA

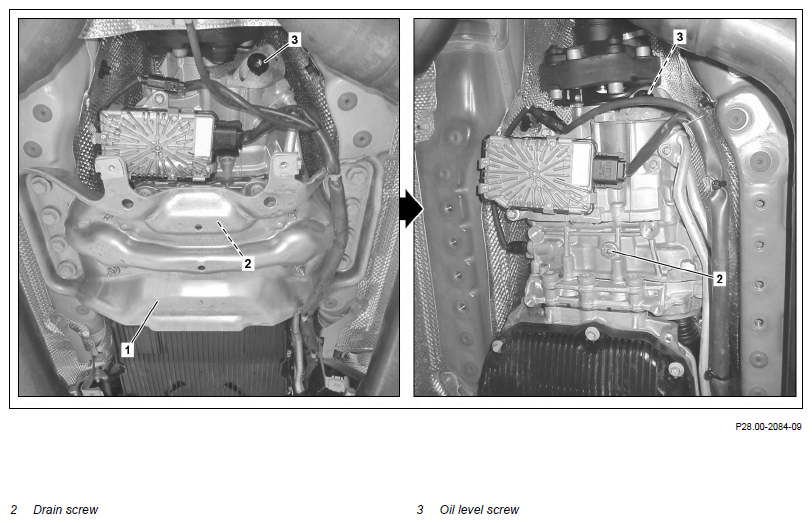

Shown on model 213.088

Courtesy of MERCEDES-BENZ USA

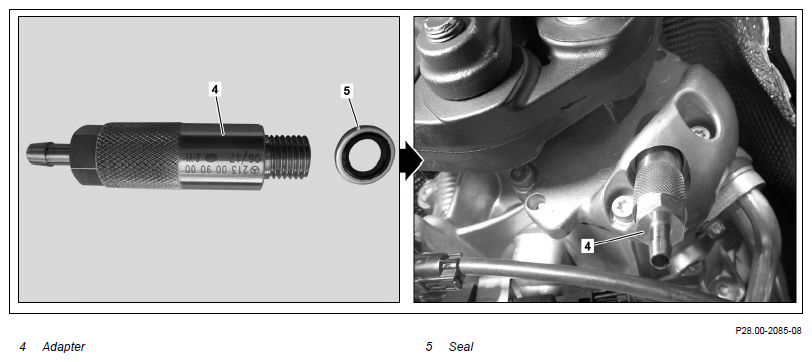

Adapter (4) shown on transfer case in model 213.088

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Remove
1	Remove rear engine mount.
		Model 213 with engine 177 with transmission 725.096 with code M005 (Vehicles with 4-MATIC/all-wheel drive)	AR22.10-P-1160MNE
		Model 217, 222 with engine 177 with transmission 725.09 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR22.10-P-1160MNM
		Model 253 with engine 177 with transmission 725.096 with code M005 (Vehicles with 4-MATIC/all-wheel drive)	AR22.10-P-1160MNG
	Clean
2	Clean area around drain screw (2), crash stop plug and oil level screw (3).
	Remove
3	Remove oil level screw (3) with crash stop plug from transfer case.	Dispose of old oil level screw (3). Otherwise, this may lead to leakage and consequential damage.
	Check
4	Check crash stop plug for damage and wear.	If problems occur, ↓ Replace crash stop plug.
	Drain off
5	Unscrew drain screw (2) on transfer case and drain oil.	Collect escaping oil in a suitable container. Damage can otherwise occur. 8 Dispose of old drain screw (2). Otherwise, this may lead to leakage and consequential damage.
	Clean
6	Clean threaded hole of drain screw (2) in transfer case.
	Install
7	Screw new drain screw (2) tightly into transfer case.	Replace drain screw (2) each time it is removed. Otherwise, this may lead to leakage and consequential damage.
		Drain screw to transfer case	*BA28.10-P-1003-01G
	Install
8	Screw the adapter (4) with the sealing ring (5) into the threaded hole of the oil level screw (3)	Adapter	Fig 2
	Pour in
9	Add specified oil filling capacity to hand pump.	Transfer case oil	*BF28.10-P-1001-01F
		Hand pump	Fig 1
10	Connect hand pump to adapter (4).	Hand pump	Fig 1
		Adapter	Fig 2
11	Fill transfer case.	Transfer case oil	*BF28.10-P-1001-01F
		Hand pump	Fig 1
12	Disconnect hand pump from adapter (4).	Drain off excess oil. Damage can otherwise occur. Hand pump	Fig 1
		Adapter If less than 50 ml of oil flows out of the transfer case, ↓ fill 100 ml into hand pump and repeat operation step 11. If more than 50 ml of oil flows out of the transfer case, ↓ Transfer case is sufficiently filled, continue with operation step 13.	Fig 2
	Remove
13	Remove adapter (4) with the sealing ring (5) from the threaded hole of the oil level screw (3).	Adapter	Fig 2
	Clean
14	Clean threaded hole of oil level screw (3) in transfer case.
	Install
15	Tighten new oil level screw (3) at transfer case.	Replace oil level screw (3) each time it is unscrewed. Otherwise, this may lead to leakage and consequential damage.
		Oil level sight glass to transfer case	*BA28.10-P-1007-01G
16	Fit crash stop plug over the oil level screw (3) on transfer case.
17	Install rear engine mount.
		Model 213 with engine 177 with transmission 725.096 with code M005 (Vehicles with 4-MATIC/all-wheel drive)	AR22.10-P-1160MNE
		Model 217, 222 with engine 177 with transmission 725.09 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR22.10-P-1160MNM
		Model 253 with engine 177 with transmission 725.096 with code M005 (Vehicles with 4-MATIC/all-wheel drive)	AR22.10-P-1160MNG
	Reset learned values
18	Reset learned values in transfer case control unit using diagnostic system.
			AD00.00-P-2000-04B

Fig 1: Identifying Hand Pump (210 589 00 71 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Adapter (213 589 00 90 00)

Courtesy of MERCEDES-BENZ USA
