Overview Of System Components, Active Body Control (ABC) - GF32.50-P-9997LF

Model 217, 222

with code 487 (MAGIC BODY CONTROL)

G15347063Courtesy of MERCEDES-BENZ USA

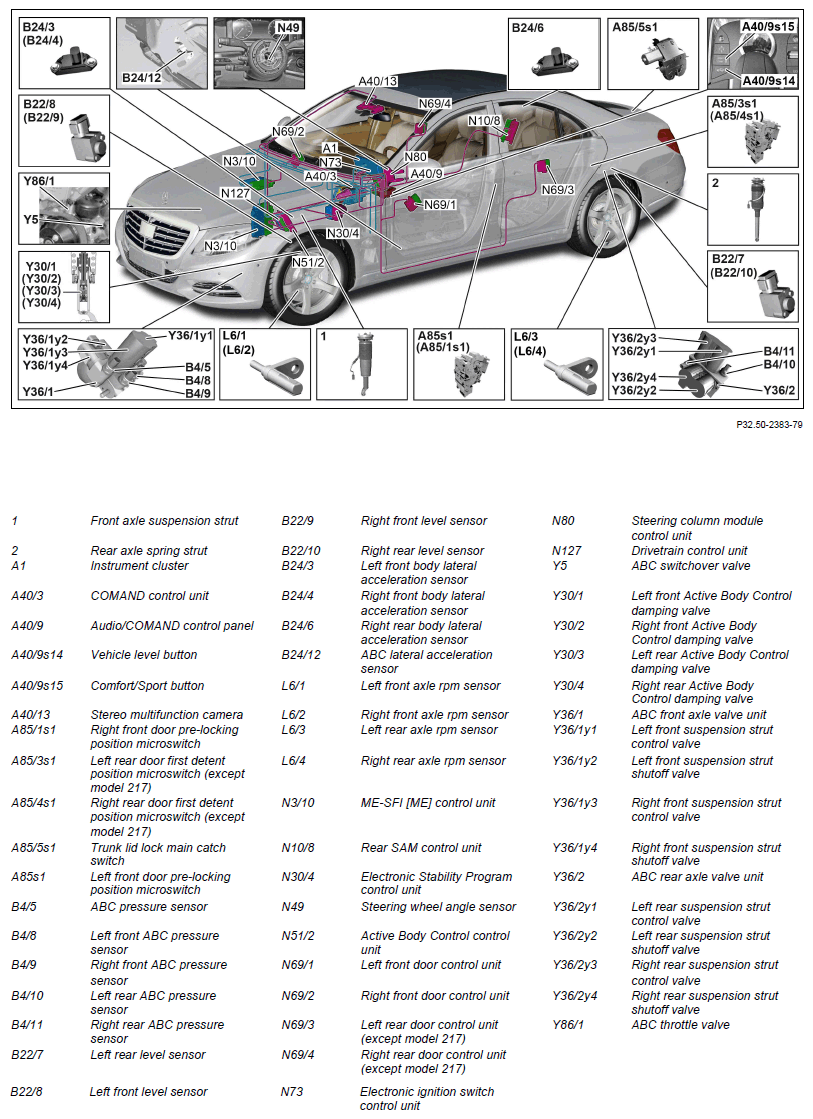

Shown on model 222 up to model year 2018

G15347064Courtesy of MERCEDES-BENZ USA

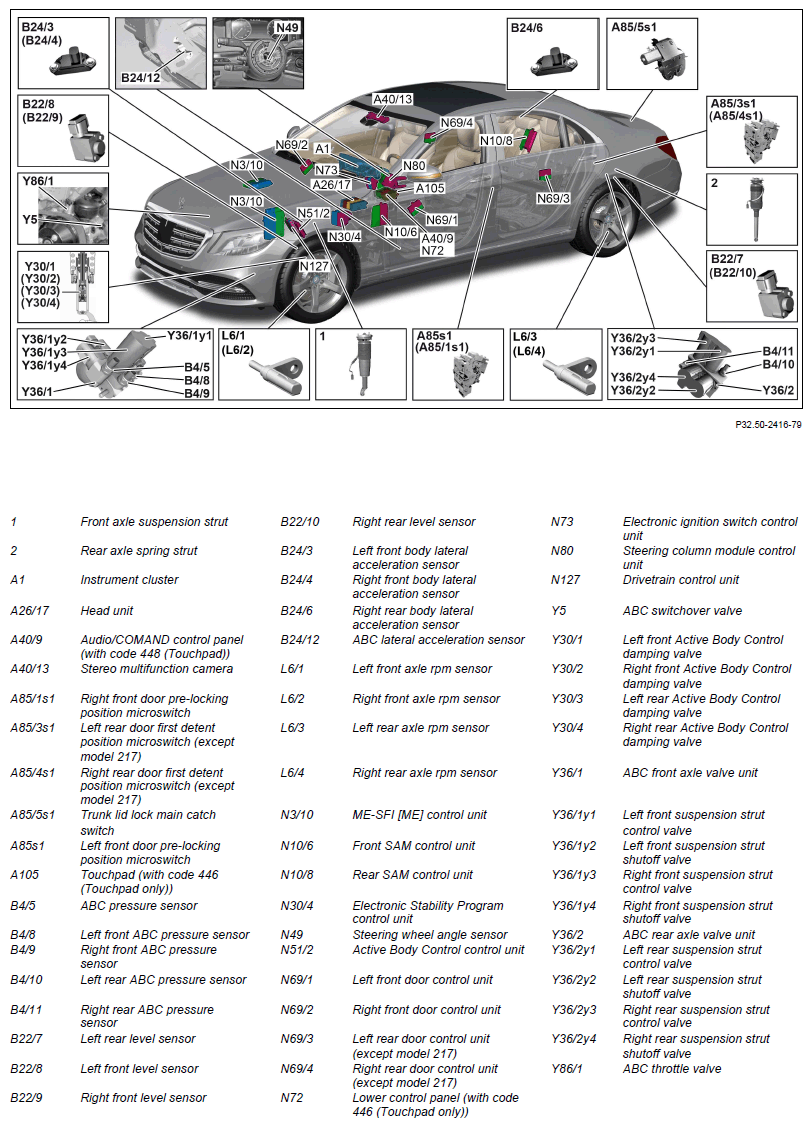

Shown on model 222 as of model year 2018

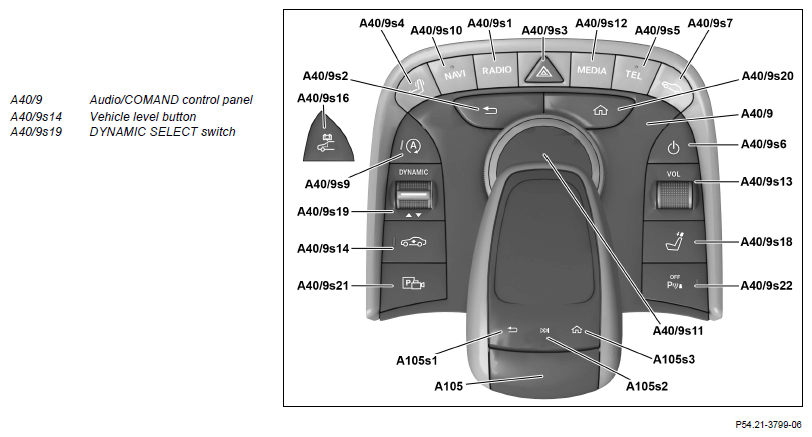

View of Audio/COMAND control panel as of model year 2018 (with code 448 (Touchpad), with engine 176, 256)

G15347065Courtesy of MERCEDES-BENZ USA

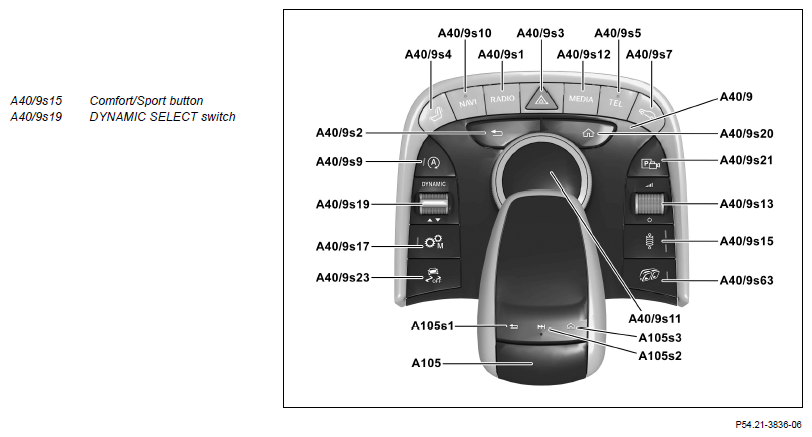

View of Audio/COMAND control panel as of model year 2018 (with code 448 (Touchpad), with engine 177, 279)

G15347066Courtesy of MERCEDES-BENZ USA

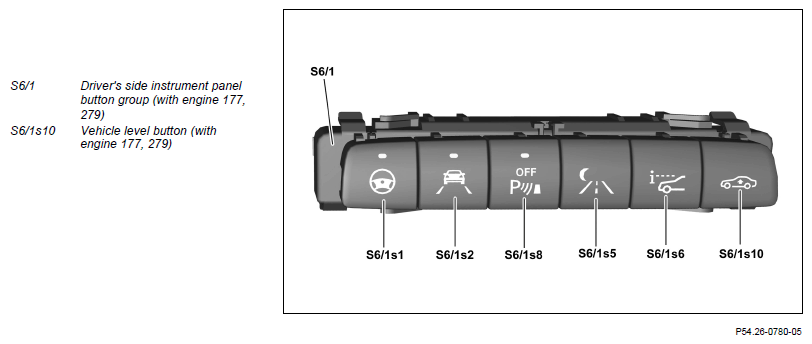

View of driver's side instrument panel button group

G15347067Courtesy of MERCEDES-BENZ USA

Shown on model 222 up to model year 2018

G15347068Courtesy of MERCEDES-BENZ USA

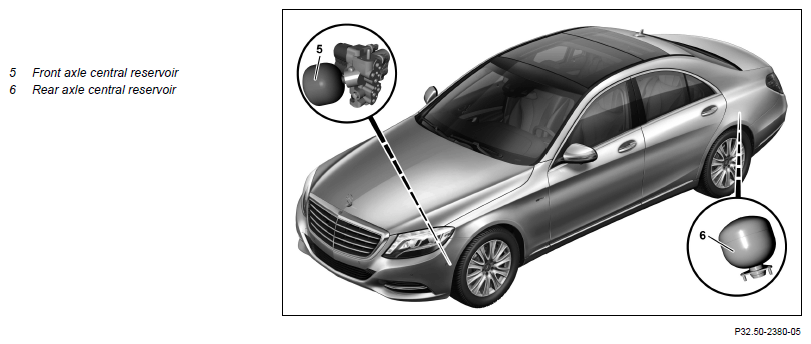

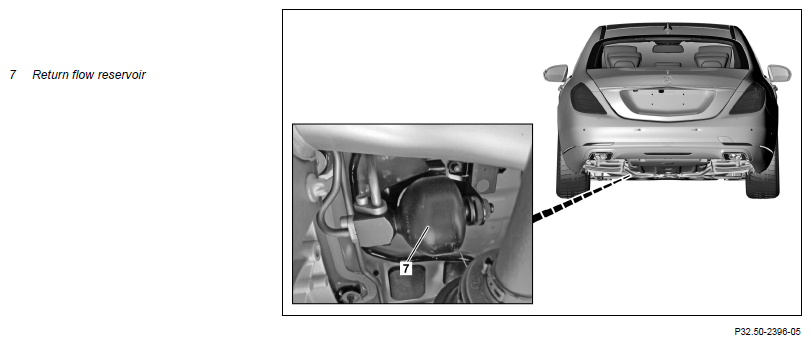

Shown on model 222 up to model year 2018

G15347069Courtesy of MERCEDES-BENZ USA
  Component description for instrument cluster Model 217, 222 up to model year 2018 with code 487 (MAGIC BODY CONTROL)
A1		 GF54.30-P-6000LF
    Model 217, 222 as of model year 2018 with code 487 (MAGIC BODY CONTROL)
A1		 GF54.30-P-6000LFM
  Head unit, component description Model 217, 222 as of model year 2018 with code 487 (MAGIC BODY CONTROL)
A26/17		 GF82.85-P-3140LFM
  Component description for COMAND controller unit Model 217, 222 up to model year 2018 with code 487 (MAGIC BODY CONTROL)
A40/3		 GF82.85-P-3136LF
  Component description for Audio/COMAND control panel Model 217, 222 up to model year 2018 with code 487 (MAGIC BODY CONTROL)
A40/9		 GF54.21-P-4501LF
    Model 217, 222 as of model year 2018 with code 448 (Touchpad) with code 487 (MAGIC BODY CONTROL)
A40/9		 GF54.21-P-4501LFM
  Component description for multifunction camera Model 217, 222 up to model year 2018 with code 487 (MAGIC BODY CONTROL)
A40/13		 GF54.21-P-3300LF
    Model 217, 222 as of model year 2018 with code 23P (Driving Assistance package) with code 487 (MAGIC BODY CONTROL)
A40/13		 GF54.21-P-3300LFM
  Touchpad, component description Model 217, 222 as of model year 2018 with code 446 (Touchpad only) with code 487 (MAGIC BODY CONTROL)
A105		 GF54.21-P-4511LF
  Component description for ME-SFI (ME) control unit Model 217 with engine 176.9, 177.9 with code 487 (MAGIC BODY CONTROL)
Model 222 with engine 176.9, 177.9 with code 487 (MAGIC BODY CONTROL)
N3/10		 GF07.61-P-6000MNL
    Model 217, 222 with engine 157.9, 278.9 with code 487 (MAGIC BODY CONTROL)
N3/10		 GF07.61-P-6000MML
    Model 217 with engine 279 with code 487 (MAGIC BODY CONTROL)
Model 222 with engine 277, 279 with code 487 (MAGIC BODY CONTROL)
N3/10		 GF07.61-P-6000MUB
    Model 222 with engine 276.9 with code 487 (MAGIC BODY CONTROL)
N3/10		 GF07.61-P-6000MMK
    Model 217, 222 with engine 276.8 with code 487 (MAGIC BODY CONTROL)
N3/10		 GF07.61-P-6000MMT
    Model 222 with engine 256.9 with code 487 (MAGIC BODY CONTROL)
N3/10		 GF07.61-P-6000MRT
    Model 222 with engine 264.9 with code 487 (MAGIC BODY CONTROL)
N3/10		 GF07.61-P-6000MRK
  Component description for front SAM control unit N10/6 GF54.21-P-7010LF
  Component description for rear SAM control unit N10/8 GF54.21-P-7030LF
  Component description for Electronic Stability Program control unit Model 217, 222 (except 222.004/057/104/157/163) up to model year 2018 with code 487 (MAGIC BODY CONTROL)
N30/4		 GF42.45-P-5119LF
    Model 217, 222 (except 222.173) as of model year 2018 with code 487 (MAGIC BODY CONTROL)
N30/4		 GF42.45-P-5119LFM
    Model 222.173 as of model year 2018 with code 487 (MAGIC BODY CONTROL)
N30/4		 GF42.45-P-5119LFA
    Model 222.004/057/104/157/163 up to model year 2018 with code 487 (MAGIC BODY CONTROL)
N30/4		 GF42.45-P-5119LFH
  ABC control unit, component description N51/2 GF32.50-P-4501LF
  Component description for left front door control unit N69/1 GF72.29-P-6001LF
  Component description for right front door control unit N69/2 GF72.29-P-6009LF
  Component description for rear door control unit Model 222 with code 487 (MAGIC BODY CONTROL)
N693, N694		 GF72.29-P-6021LF
  Lower control panel, component description Model 217, 222 as of model year 2018 with code 446 (Touchpad only) with code 487 (MAGIC BODY CONTROL)
N72		 GF54.25-P-4270LFM
  Component description for the electronic ignition lock control unit N73 GF80.57-P-6001LF
  Component description for steering column tube module control unit Model 217, 222 up to model year 2018 with code 487 (MAGIC BODY CONTROL)
N80		 GF54.21-P-6051LF
    Model 217, 222 as of model year 2018 with code 487 (MAGIC BODY CONTROL)
N80		 GF54.21-P-6051LFM
  Drivetrain control unit, component description Model 217, 222 (except 222.163/173) with engine 157.9, 276.8, 277, 278.9, 279 with code 487 (MAGIC BODY CONTROL)
Model 217, 222 with engine 176.9 with code 487 (MAGIC BODY CONTROL)
Model 217, 222 with engine 177.9 with code 487 (MAGIC BODY CONTROL)
Model 222 with engine 256.9 with code 487 (MAGIC BODY CONTROL)
Model 222 with engine 264.9 with code 487 (MAGIC BODY CONTROL)
N127		 GF54.21-P-2141LF
    Model 222 with engine 276.9 with code 487 (MAGIC BODY CONTROL)
Model 222.163/173 with engine 276.8 with code 487 (MAGIC BODY CONTROL)
N127		 GF54.21-P-2141MMK
    Model 222 with engine 642.8 with code 487 (MAGIC BODY CONTROL)
N127		 GF54.21-P-2141OGS
    Model 222 with engine 656.9 with code 487 (MAGIC BODY CONTROL)
N127		 GF54.21-P-2141OIA
    Model 222 with engine 651.9 with code 487 (MAGIC BODY CONTROL)
N127		 GF54.21-P-2141OLA
  Table of contents for function description of Active Body Control (ABC)   GF32.50-P-0999LF
