Fuse And Relay Box, As-Built Configuration - GF54.15-P-0800LF
Model 217, 222

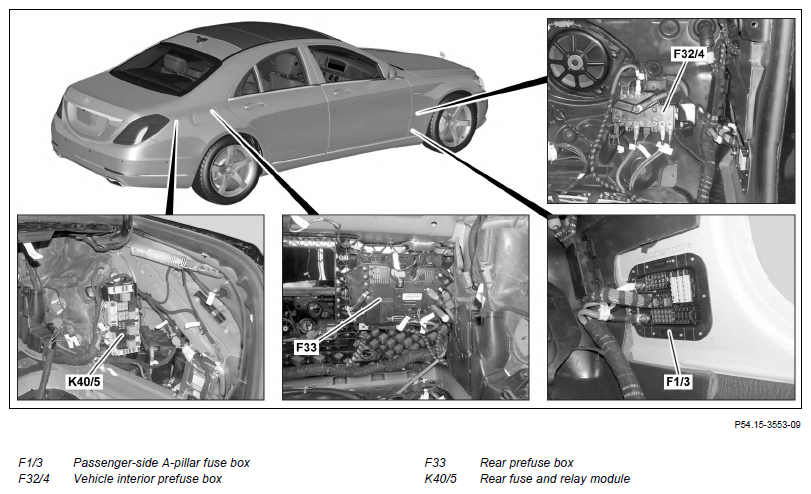

Shown model 222.0

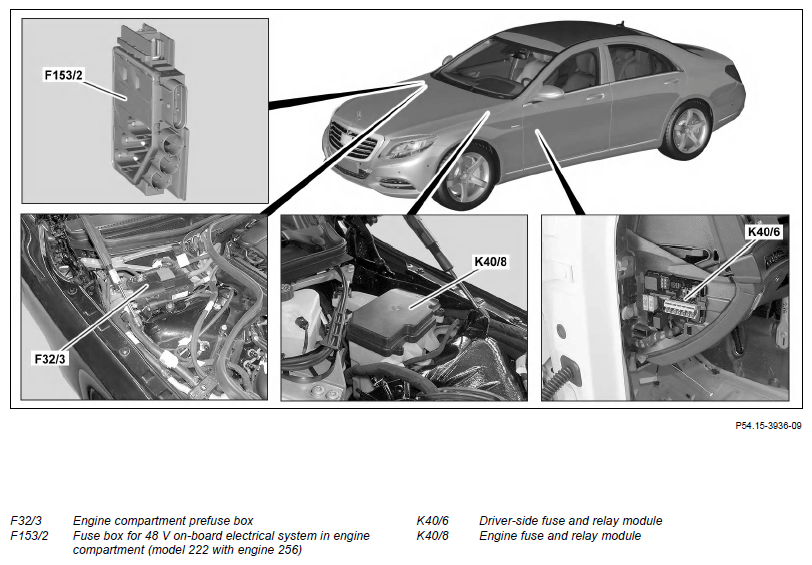

Shown model 222.0

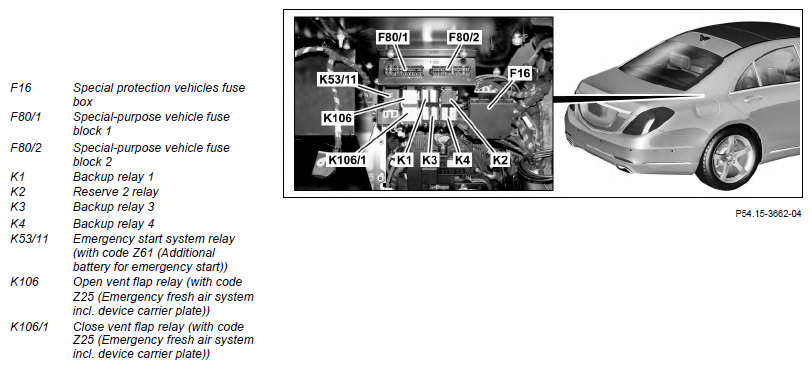

Shown on model 222 with code Z07 (Maximum protection)
Shown on model 222 with code Z07 (Maximum protection)
| Assignment of passenger-side A-pillar fuse box | Model 217, 222 up to model year 2018 F1/3 |
GF54.15-P-1256-48LF | |
| Model 217, 222 as of model year 2018 F1/3 |
GF54.15-P-1256-48LFM | ||
| Fuse assignment in prefuse box on special protection vehicles | Model 222 with code Z07 (Top protection) F16 |
GF54.15-P-1256-23LF | |
| Fuse assignment of prefuse box in engine compartment | Model 217, 222 up to model year 2018 F32/3 |
GF54.15-P-1256-25LF | |
| Model 217, 222 as of model year 2018 F32/3 |
GF54.15-P-1256-25LFM | ||
| Fuse assignment on interior prefuse box | F32/4 | GF54.15-P-1256-26LF | |
| Fuse assignment of rear prefuse box | F33 | GF54.15-P-1256-08LF | |

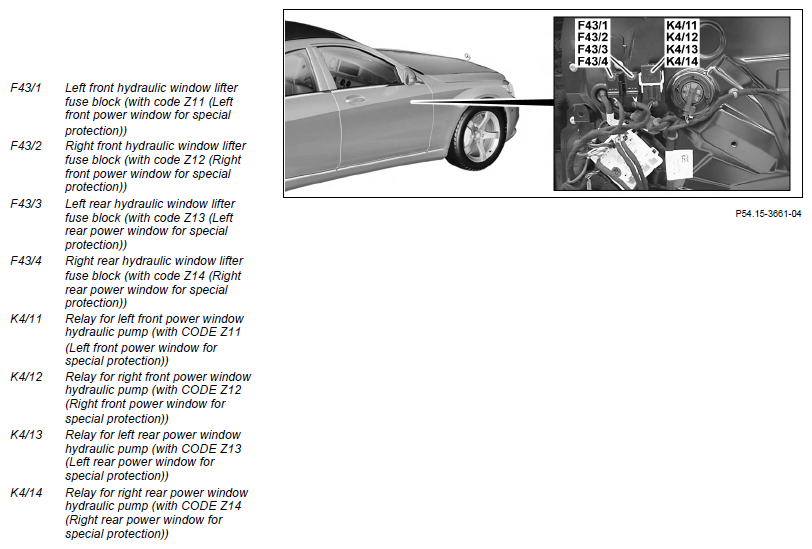

| Fuse assignment of hydraulic window lifter fuse block | Model 222 with code Z11 (Left front power window with special protection) Model 222 with code Z12 (Right front power window with special protection) Model 222 with code Z13 (Left rear power window with special protection) Model 222 with code Z14 (Right rear power window with special protection) F43/1, F43/2, F43/3, F43/4 |
GF54.15-P-1256-27LF | |
| Fuse assignment of additional fuse holder for special protection vehicles | Model 222 with code Z07 (Top protection) F80/1, F80/2 |
GF54.15-P-1256-21LF | |
| Fuse assignment of fuse box for 48 V on-board electrical system in engine compartment | Model 222 with engine 256 F153/2 | GF54.15-P-1256-46LFM | |
| Assignment of rear fuse and relay module | Model 217, 222 up to model year 2018 K40/5 |
GF54.15-P-1256-30LF | |
| Model 217, 222 as of model year 2018 K40/5 |
GF54.15-P-1256-30LFM | ||
| Assignment of driver-side fuse and relay module | Model 217, 222 up to model year 2018 K40/6 |
GF54.15-P-1256-49LF | |
| Model 217, 222 as of model year 2018 K40/6 |
GF54.15-P-1256-49LFM | ||
| Assignment of engine fuse and relay module | Model 217, 222 up to model year 2018 K40/8 |
GF54.15-P-1256-32LF | |
| Model 217, 222 as of model year 2018 K40/8 |
GF54.15-P-1256-32LFM |
