Fuse Assignment Of Pre-Fuse Box In Engine Compartment - GF54.15-P-1256-25LFM
Model 217, 222
as of model year 2018

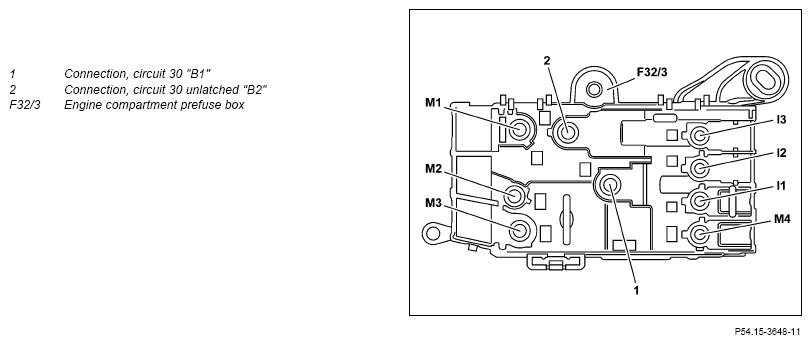

View from below
| Connection | Fuse Identification | Circuit | Line ID (line fused) | Fused function | Rating in amperes (A) |
|---|---|---|---|---|---|
| M3 | Electrical fuse 1 (F32/3f1) | 30t | 85.0 RD | Except model 222.173 and except model 222 with engine 256: Alternator (G2) |
500 |
| MR5 | Electrical fuse 3 (F32/3f3) | 30t | 12.0 RD | Electrical power steering control unit (N68) | 100 |
| MR2 | Electrical fuse 4 (F32/3f4) | 30t | 12.0 RD | Engine 176, 256, 276, 279, 656: Fan motor (M4/7) |
100 |
| M4 | Electrical fuse 5 (F32/3f5) | 30t | 6.0 RD | Transmission 725: Fully integrated transmission control controller unit (Y3/8) |
100 |
| I1 | Electrical fuse 6 (F32/3f6) | 30t | - | Spare | - |
| M2 | Electrical fuse 7 (F32/3f7) | 30 unlatched | 10.0 RD | Engine 656: Glow output stage (N14/3) |
150 |
| MR1 | Electrical fuse 8 (F32/3f8) | 30 unlatched | 6.0 RD | Motor fuse and relay module (K40/8) | 60 |
| MR3 | Electrical fuse 9 (F32/3f9) | 30t | - | Spare | - |
| MR4 | Electrical fuse 10 (F32/3f10) | 30t | 16.0 RD | Engine 177: Fan motor (M4/7) |
150 |
| I2 | Electrical fuse 11 (F32/3f11) | 30t | - | Spare | - |
| I3 | Electrical fuse 12 (F32/3f12) | 30t | 16.0 RD | Motor fuse and relay module (K40/8) | 150 |

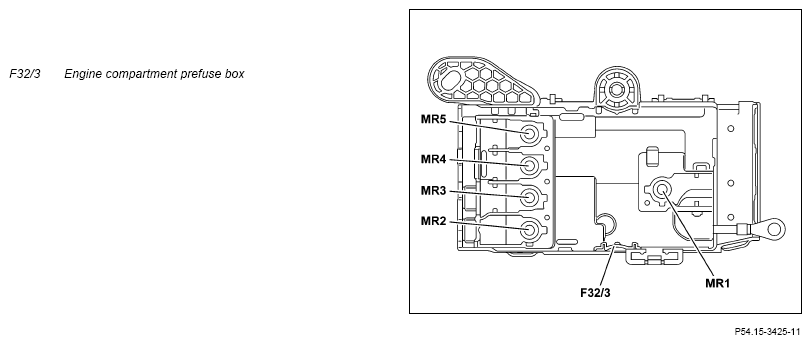

View from above
| Connection | Fuse Identification | Circuit | Line ID (line fused) | Fused function | Rating in amperes (A) |
|---|---|---|---|---|---|
| M3 | Electrical fuse 1 (F32/3f1) | 30t | 85.0 RD | Except model 222.173 and except model 222 with engine 256: Alternator (G2) |
500 |
| MR5 | Electrical fuse 3 (F32/3f3) | 30t | 12.0 RD | Electrical power steering control unit (N68) | 100 |
| MR2 | Electrical fuse 4 (F32/3f4) | 30t | 12.0 RD | Engine 176, 256, 276, 279, 656: Fan motor (M4/7) |
100 |
| M4 | Electrical fuse 5 (F32/3f5) | 30t | 6.0 RD | Transmission 725: Fully integrated transmission control controller unit (Y3/8) |
100 |
| I1 | Electrical fuse 6 (F32/3f6) | 30t | - | Spare | - |
| M2 | Electrical fuse 7 (F32/3f7) | 30 unlatched | 10.0 RD | Engine 656: Glow output stage (N14/3) |
150 |
| MR1 | Electrical fuse 8 (F32/3f8) | 30 unlatched | 6.0 RD | Motor fuse and relay module (K40/8) | 60 |
| MR3 | Electrical fuse 9 (F32/3f9) | 30t | - | Spare | - |
| MR4 | Electrical fuse 10 (F32/3f10) | 30t | 16.0 RD | Engine 177: Fan motor (M4/7) |
150 |
| I2 | Electrical fuse 11 (F32/3f11) | 30t | - | Spare | - |
| I3 | Electrical fuse 12 (F32/3f12) | 30t | 16.0 RD | Motor fuse and relay module (K40/8) | 150 |
