Remove/Install Detachable Parts When Replacing Windshield - AR67.10-P-1050LF
Model 217, 222
Shown on model 222
| Injury hazard from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism. | When working on the windshield wiper mechanism, always switch off the ignition and store transmitter key outside of transmission range (at least 2 m). | AS82.30-Z-0001-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove wiper arms | AR82.30-P-6100LF | |
| 2 | Remove water repellent | ||
| 3 | Remove wind deflector | Model 217.4 | AR77.20-P-2500LCA |
| 4.1 | Unclip strips on outer A-pillars and remove | Model 217.4 | |
| 4.2 | Unclip side drip rails and remove | Model 217.3, 222 | |

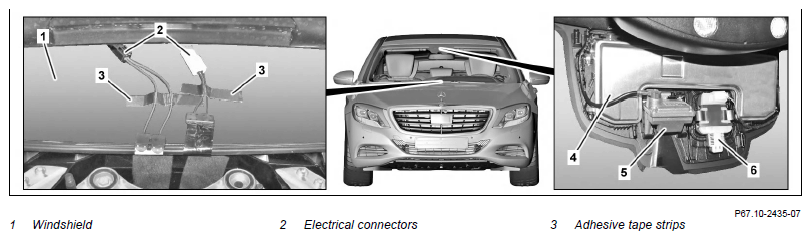

| 5 | Disconnect electrical connectors (2) from windshield (1) | Model 217, 222 with code 597 (Windscreen, heated) | |
| 6 | Fasten electrical lines to windshield (1) with adhesive strips (3) | ||
| 7 | Remove left and right A-pillar paneling | Model 217.4 | AR68.30-P-4050LCA |
| Model 217.3, 222.0/1/9 | AR68.30-P-4050LF | ||
| 8 | Install in the reverse order |
