Remove/Install Wind Deflector - AR77.20-P-2500LCA

Model 217.4

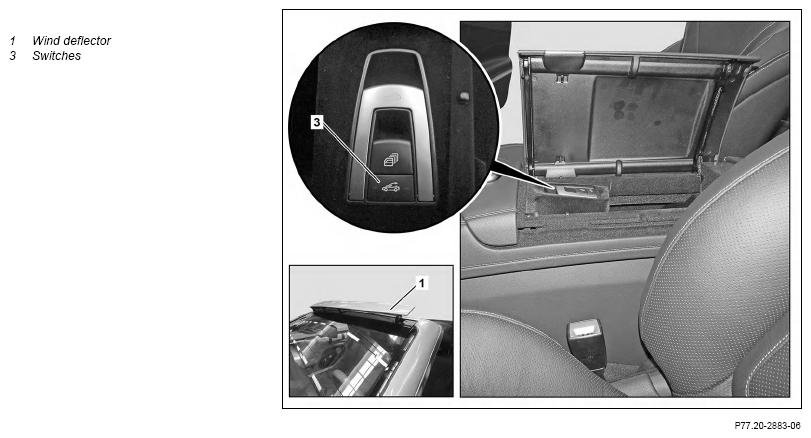

Fig 1: Wind Deflector Component Location - Model 217.4

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Open soft top.
2	Remove A-pillar trim.		AR68.30-P-4050LCA
3	Actuate switch (3) and move wind deflector (1) upward.

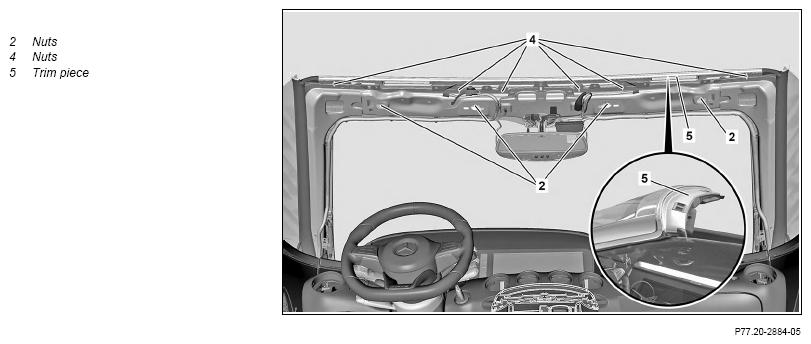

4	Unscrew nuts (4).	Nut, wind deflector to roof frame	*BA77.25-P-1001-02A
		Nut, trim piece to roof frame	*BA77.25-P-1002-02A
5	Remove trim element (5) upward.
6	Unscrew nuts (2).	Nut, wind deflector to roof frame	*BA77.25-P-1001-02A
7	Remove wind deflector (1) upward.
8	Install in the reverse order.

WIND DEFLECTOR

Number	Designation			Model 217.4
BA77.25-P-1001-02A	Nut, wind deflector to roof frame	M8	Nm	20

WIND DEFLECTOR

Number	Designation			Model 217.4
BA77.25-P-1002-02A	Nut, trim piece to roof frame	M5	Nm	3
