Remove/Install Soft Top Mechanism Hydraulic Cylinder - AR77.37-P-4171LCA
Model 217.4
| Risk of injury when performing check and repair work in area of roll bar | Keep body parts out of the area where the roll bars extend. Do not use the cover in the area of the roll bar as a storage place for objects. |
AS91.00-Z-0003-01LCA | |
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. |
AS91.00-Z-0008-01A | |
| Risk of injury to skin or eyes from hydraulic fluid spraying out under pressure. Risk of poisoning from swallowing hydraulic fluid. | Depressurize hydraulic system completely before starting any work on it. Wear protective clothing and safety glasses. | AS00.00-Z-0013-01A | |
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Close soft top | With soft top open. | |
| 2 | Move soft top compartment lid upright | ||

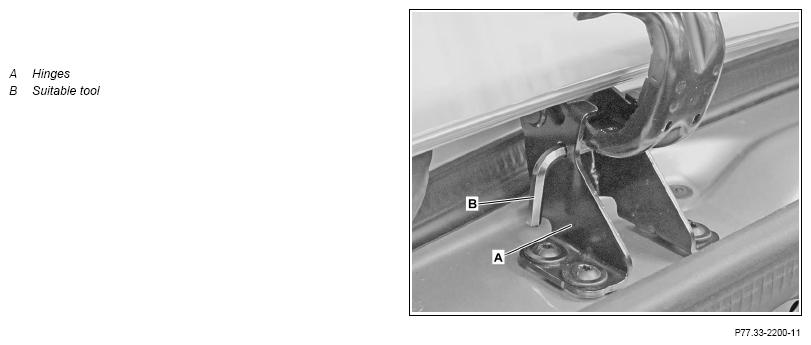

| 3 | Secure soft top compartment lid against falling down | Hydraulic system is depressurized, carefully lay down soft top compartment lid. Otherwise damage can occur. Alway remove suitable tools (B) from holes in hinges (A). Otherwise the soft top compartment can be damaged. |
|
| 4 | Secure soft top bow against lowering | ||
| 5 | Wait until hydraulic system is unpressurized | ||
| 6 | Cover vehicle in left and right rear area | ||
| 7 | Remove seat cushion | AR91.12-P-1020LF | |
| 8 | Remove seat backrest | AR91.12-P-1620LF | |
| 9 | Detach sidebag unit in rear and lay down to side with electrical line connected | AR91.60-P-0694LF | |

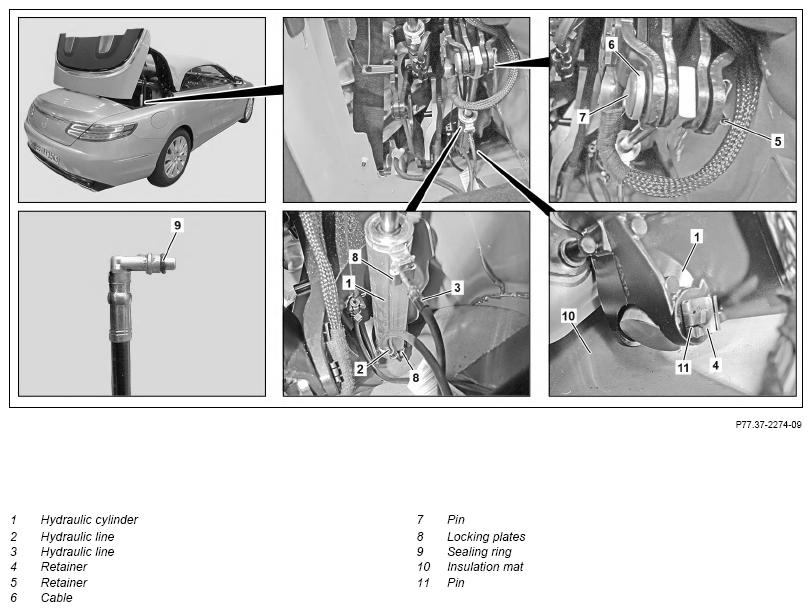

| 10 | Expose hydraulic lines (2, 3) | ||
| 11 | Remove retainer (5) from pin (7) | ||
| 12 | Pull out bolts (7) and unhook cable (6) for side cover | ||
| 13 | Remove retainer (4) from pin (11) | ||
| 14 | Pull out pin (11) | For this purpose push insulating mat (10) slight toward side. |
|
| 15 | Remove hydraulic cylinder (1) with hydraulic lines (2, 3) connected and lay down to side. | ||
| 16 | Remove locking plates (8) from hydraulic lines (2, 3) | ||
| 17 | Pull hydraulic lines (2, 3) out of hydraulic cylinder (1) | ||
| 18 | Catch hydraulic oil running out with suitable aid. | ||
| 19 | Replace sealing rings (9) on hydraulic lines (2, 3) | ||
| BB00.40-P-0343-00A | |||
| 20 | Install in the reverse order | ||
| 21 | Check oil level of hydraulic system, correct if necessary | AR77.37-P-3501LCA |
