Remove/Install Soft Top Hydraulic Pump - AR77.37-P-1000LCA
Model 217.4
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury to skin or eyes from hydraulic fluid spraying out under pressure. Risk of poisoning from swallowing hydraulic fluid. | Depressurize hydraulic system completely before starting any work on it. Wear protective clothing and safety glasses. | AS00.00-Z-0013-01A | |
| Remove/install | |||
| 1 | Open luggage compartment lid | ||
| 2 | Remove luggage compartment lining on right | AR68.30-P-4800LCA | |
| 3 | Detach hydraulic lines from retaining clips | ||

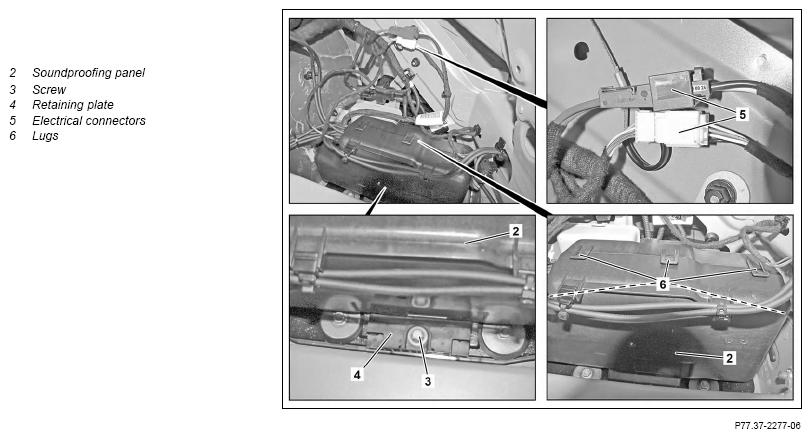

| 4 | Unscrew bolt (3) and remove retaining plate (4) | *BA77.37-P-1006-01C | |
| 5 | Remove soundproofing (2) with connected lines | ||
| 6 | Open soundproofing (2) on shackles (6) and lay hydraulic unit (1) down to side | ||
| 7 | Disconnect electrical connections (5) | ||
| 8 |

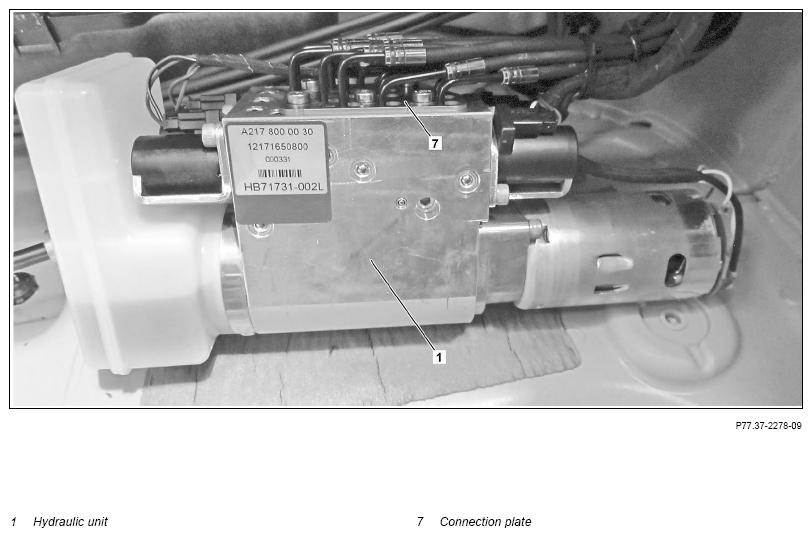

Remove hydraulic lines with connection plate (7) from hydraulic unit (1) |
AR77.37-P-1000-04LCA | |
| *BA77.37-P-1002-01C | |||
| Fig 1 | |||
| 9 | Install in the reverse order | ||
| 10 | Check oil level of hydraulic system, correct if necessary | AR77.37-P-3501LCA |
SOFT TOP HYDRAULIC SYSTEM
| Number | Designation | Model 217.4 | |
|---|---|---|---|
| BA77.37-P-1002-01C | Bolt, connection plate to hydraulic unit | Nm | 4 |
SOFT TOP HYDRAULIC SYSTEM
| Number | Designation | Model 217.4 | |
|---|---|---|---|
| BA77.37-P-1006-01C | Bolt, mounting rail for hydraulic unit to vibration damper | Nm | 23 |
