Disconnect Hydraulic Lines From Hydraulic Pump And Connect - AR77.37-P-1000-04LCA

Model 217.4

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

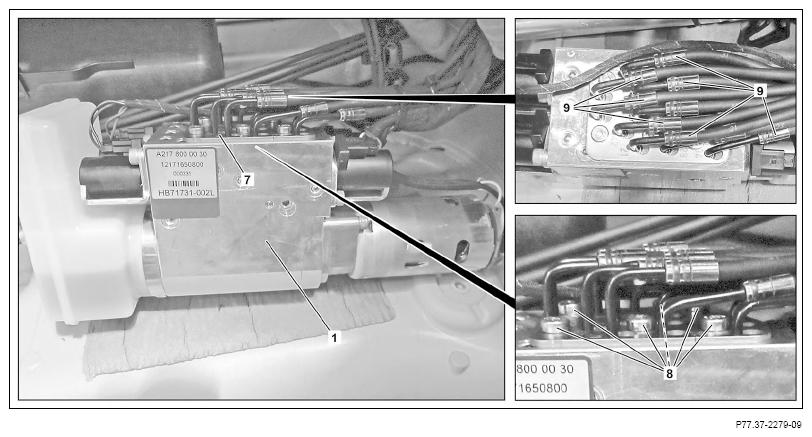

1. Remove screws/bolts (8) .
2. Detach connection plates (7) from hydraulic unit (1).
3. Disconnect hydraulic lines (9) from hydraulic unit (1).

   Observe marking of hydraulic lines (9) The connections on hydraulic unit (1) and the hydraulic lines (9) are number-coded

4. Catch hydraulic oil running out with suitable aid.
5. Plug hydraulic lines (9) with stop plugs.
6. Connect hydraulic lines (9) in opposite order.
