Remove/Install Roller Sun Blind Motor For Panoramic Roof - AR77.21-P-0491LC
MODEL 217.3
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||

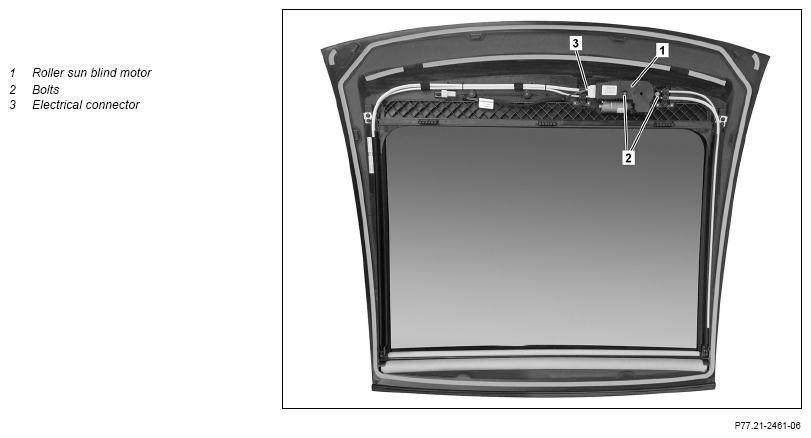

| 1 | Detach headliner in front area until roller sun blind motor (1) is accessible | AR68.30-P-4300LC | |
| 2 | Disconnect electrical connector (3) | ||
| 3 | Unscrew bolts (2) and remove roller sun blind motor (1) | ||
| 4 | Install in the reverse order | ||
| 5 | Synchronize panoramic roller sun blind with diagnostic system and perform teach-in run for automatic reversing function | ||
| AD00.00-P-2000-04B |
