Remove/Install Headliner - AR68.30-P-4300LC
Model 217.3
MODIFICATION NOTES
| 17.08.2017 | Microphones and brackets of hands-free system microphones in roof lining. | Operation step 15. |

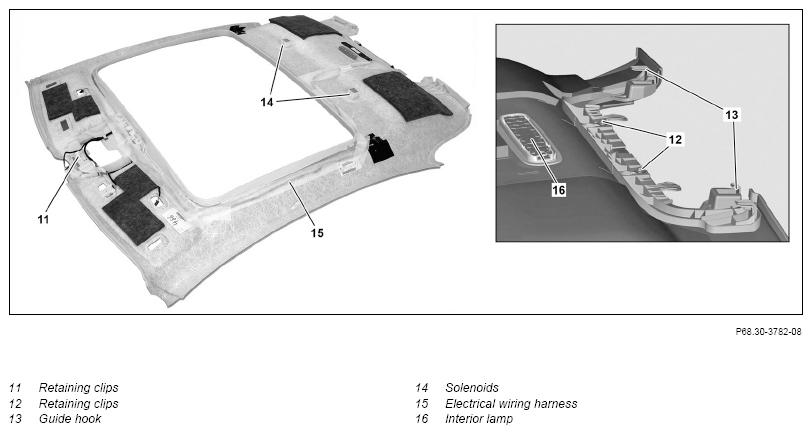

Shown on model 217.3 up to model year 2018

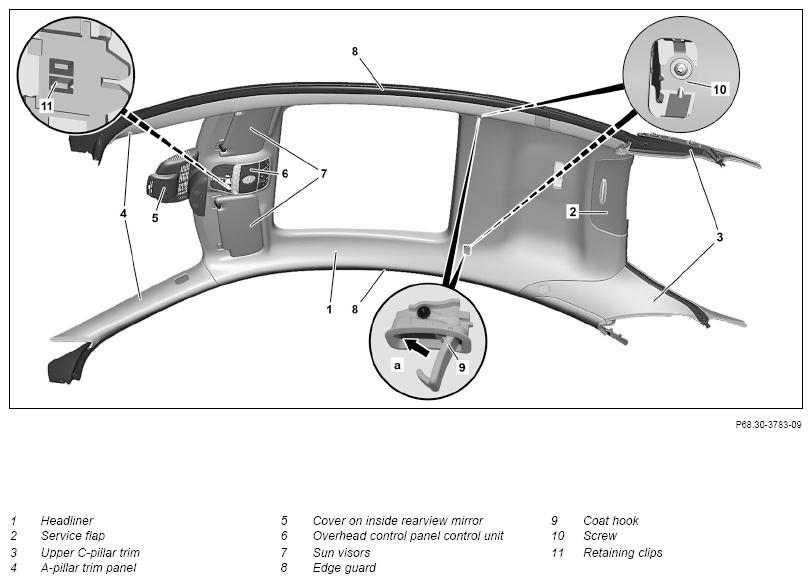

Shown on model 217.3 up to model year 2018

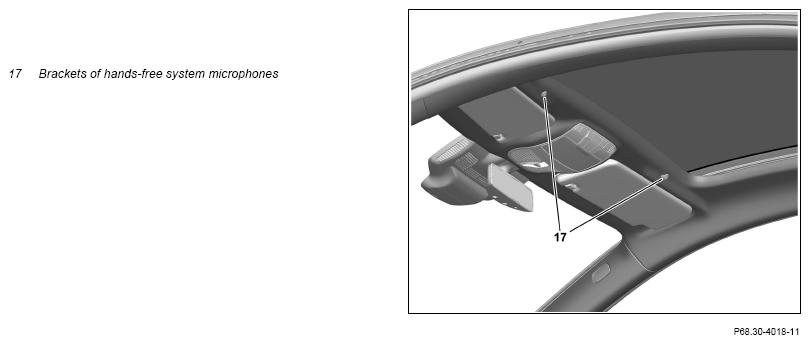

Shown on model 217.3 as of model year 2018
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Completely open roller sun blind | ||
| 2 | Remove left and right upper C-pillar trim (3) | AR68.30-P-4490LC | |
| 3 | Unclip service flap (2) and guide out towards rear | ||
| 4 | Remove the left and right A-pillar paneling (4). | AR68.30-P-4050LF | |
| 5 | Remove cover on inside rearview mirror (5) | AR68.40-P-0001LC | |
| 6 | Remove overhead control panel control unit (6) | AR82.20-P-1000LF | |
| 7 | Remove left and right sun visor (7) | AR68.60-P-5480NKB | |
| 8 | Detach edge guard (8) in area of headliner (1) | ||
| 9 | Remove coat hooks (9) | ||
| 10 | Remove screw/bolts (10) | ||
| 11 | Unclip retaining clips (11) | ||
| 12 | Unclip retaining clips (12) | ||
| 13 | Pivot headliner (1) toward rear | hooks (13) can be guided out of roof paneling mounts. The headliner (1) is always fastened to the roof paneling with 2 magnets (14). |
|
| 14 | Guide out headliner (1) | ||
| 15 | Modify driver's hands-free system microphone (B25/20) and front passenger hands-free system microphone (B25/21) as well as brackets of microphones (17) | Model 217.3 as of model year 2018 When replacing roof paneling (1). |
|
| 16 | Modify electrical wiring harness (15) | When replacing roof paneling (1). |
|
| 17 | Modify interior lamp (16) in rear | When replacing roof paneling (1). | |
| 18 | Install in the reverse order |
