Remove/Install Roller Sun Blind Guide Rail - AR77.21-P-0231LC
MODEL 217.3

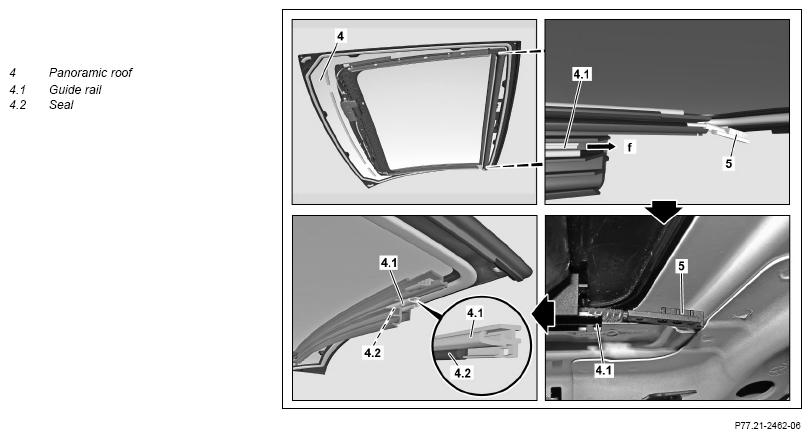

Shown on right-hand side
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||
| 1 | Remove roller sun blind from rear panoramic roof (4) | AR77.21-P-0205LC | |
| 2 | Push guide rail (4.1) in direction of rear area (arrow f) | ||
| 3 | Pull guide rail (4.1) out of panoramic roof (4) | ||
| 4 | Install in the reverse order |
