Remove/Install Drive Cable For Panoramic Sunroof Roller Sun Blind - AR77.21-P-0230LC

MODEL 217.3

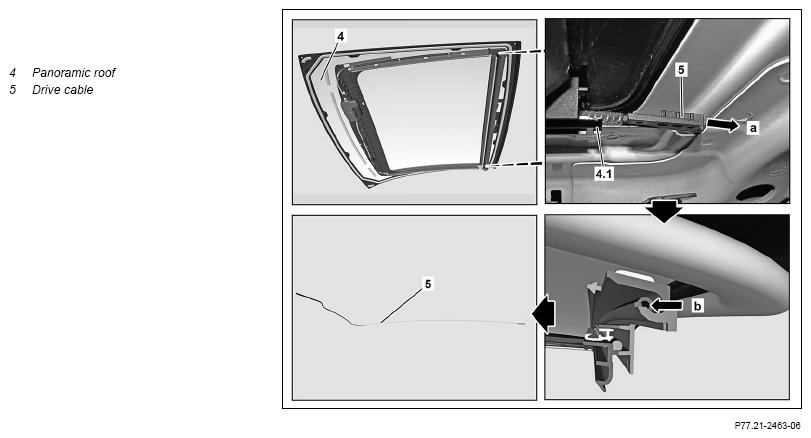

Shown on right side of vehicle

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Remove
1	Remove roller sun blind from panoramic roof (4)		AR77.21-P-0205LC
2	Pull drive cable (5) out of guide tube in direction of rear area (arrow a)	Removal of the drive cable (5) is shown on the right side of the vehicle as an example. Removal at the left-hand side of the vehicle takes place in the same way. Observe removal position.
	Install
3	Push drive cable (5) into guide tube (arrow b)	Position drive cable (5) in guide tube so that driver of the driver cable (5) points toward inside.
