Remove/Install Draft Stop - AR77.25-P-2000LCA
Model 217.4
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. |
AS91.00-Z-0008-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Remove/install | |||
| 1 | Remove rear wall paneling | AR68.30-P-4750LCA | |
| 2 | Screw on trunk partition | If trunk partition is not screwed on correctly If soft top is damaged. |
|

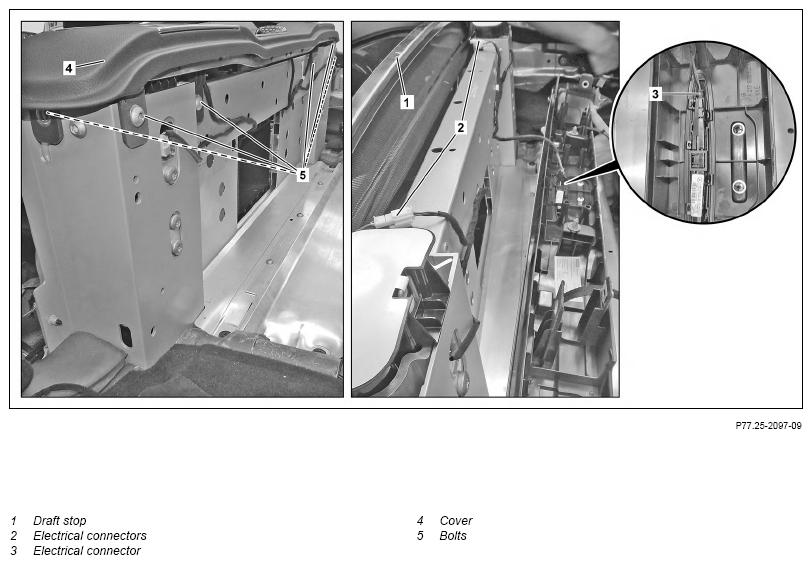

| 3 | Remove screw/bolts (5) | ||
| 4 | Unclip cover (4) upward and remove | ||
| 5 | Unclip electrical connection (3) and disconnect | ||
| 6 | Unclip electrical connectors (2) and disconnect | ||
| 7 | Open soft top | ||

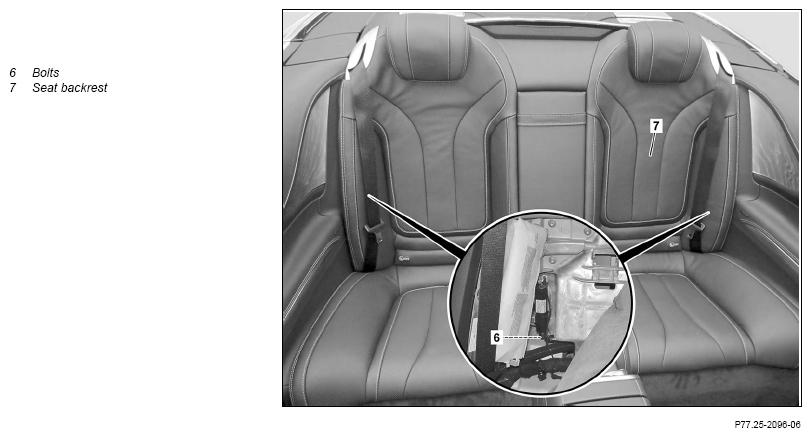

| 8 | Remove backrest (7) | AR91.12-P-1620LF | |
| 9 | Remove screw/bolts (6) | ||
| 10 | Remove draft stop (1) upward | ||
| 11 | Install in the reverse order |
