Remove/Install Rear Wall Paneling - AR68.30-P-4750LCA
Model 217.4
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove front trunk paneling | AR68.30-P-4602LCA | |
| 2 | Unscrew trunk partition from rear wall and lay down | AR68.50-P-3003LCA | |

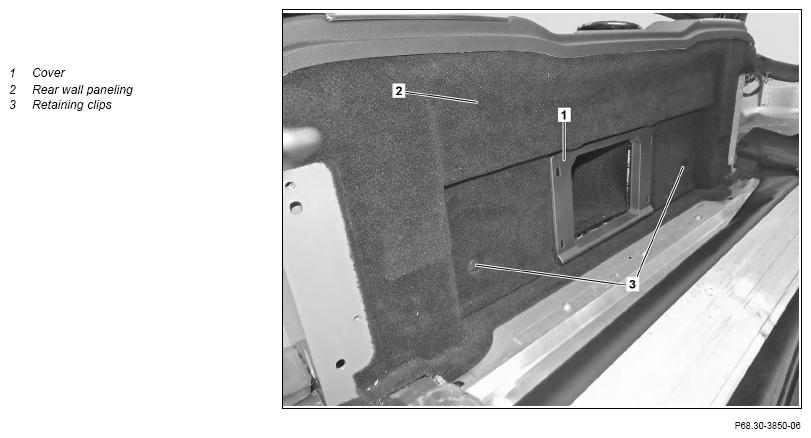

| 3 | Unclip retaining clips (3) | ||
| 4 | Remove cover (1) | ||
| 5 | Remove rear wall paneling (2) and remove upward | ||
| 6 | Install in the reverse order |
