Remove/Install Trim At C-Pillar - AR68.30-P-4490LC

MODEL 217.3

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove edge guard (4) in area of C-pillar paneling (1, 2)
2	Unclip cover (1.1)
3	Unscrew nut (3)

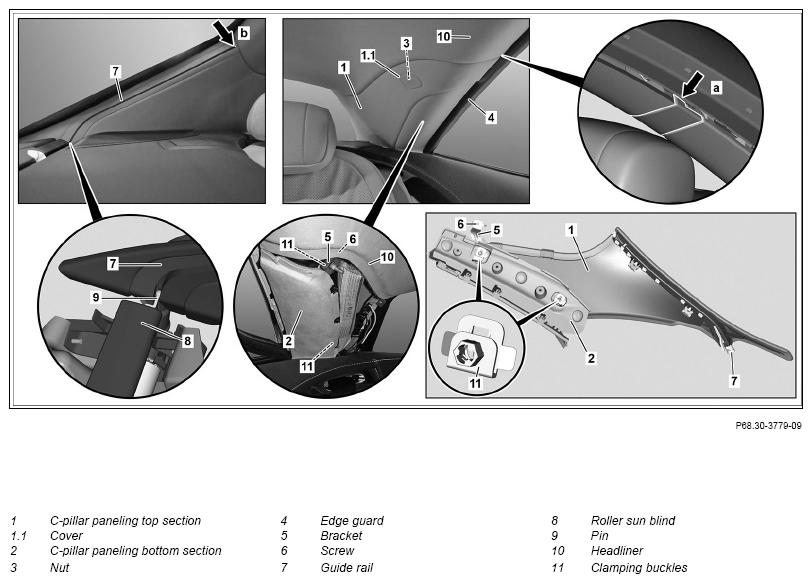

4	Unclip guide rail (7) from C-pillar paneling top section (1)	Install extraction hook in opening (arrow B), turn 90° and unclip guide rail (7) from top downward. Guide rail (7) is hooked into C-pillar paneling top section (1) at bottom. : Ensure that pin (9) on roller blind (8) is seated correctly in guide rail (7). Ensure that guide rail (7) is seated correctly. Extraction hook	Fig 1
5	Pry shackle (arrow A) on C-pillar paneling top section (1) over headliner (10)
6	Unclip C-pillar paneling top section (1) from C-pillar paneling bottom section (2)
7	Slightly pull headliner (10) down in area of bracket (5)	When removing C-pillar paneling bottom section (2) So that bolt (6) can reach bracket (5).
8	Remove screw/bolt (6) and remove bracket (5)	When removing C-pillar paneling bottom section (2)
9	Remove clamping buckles (11) together with C-pillar paneling bottom section (2)	When removing C-pillar paneling bottom section (2) : Replace clamping buckles (11) if required.
	Check
10	Check all retaining clips for damage	If necessary ↓
		Replace retaining clip.
11	Install in the reverse order
