Remove/Install Blocking Circuit Of Rear Window Antenna - AR82.62-P-7200LC
MODEL 217
| Remove/install | |||
| 1 | Remove trim from right C-pillar | MODEL 217.3 | AR68.30-P-4490LC |

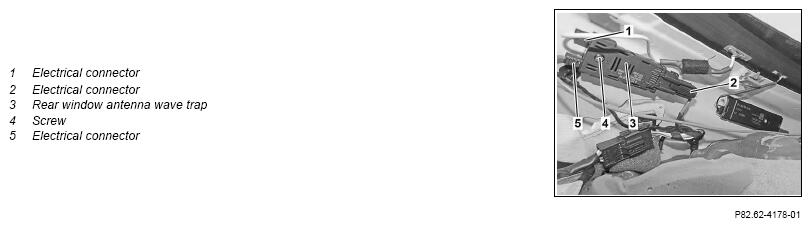

| 2 | Disconnect electrical connectors (1, 2, 5) | Avoid tensile loads on electrical lines to rear window. Otherwise the contact points may be damaged. |
|
| 3 | Remove screw/bolt (4) and remove rear window antenna wave trap (3) | ||
| 4 | Install in the reverse order |
