Remove/Install Sidebag Sensor - AR91.60-P-0710LC
Model 217
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Topical note | Notes on performing repair, body work and welding on vehicles with airbags and RTE units | AH91.00-P-0002-01M | |
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Remove left or right front seat | AR91.10-P-1000LF | |
| 2 | Disconnect battery ground line | AR54.10-P-0003LF | |
| 3 | Removing left and right door sill molding | AR68.30-P-4100LC | |

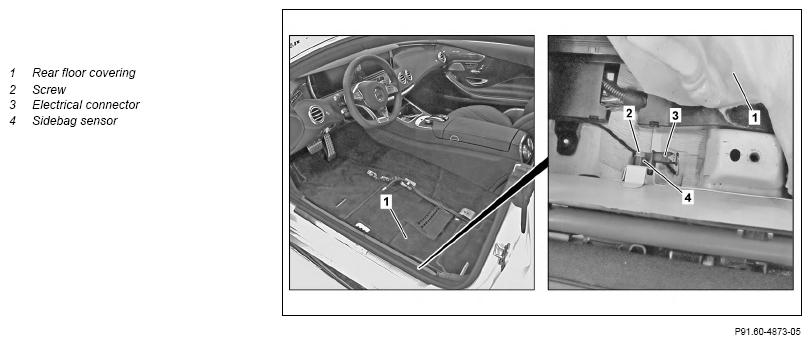

| 4 | Fold up rear floor covering (1) | ||
| 5 | Remove bolt (2) | *BA91.60-P-1008-01I | |
| 6 | Disconnect electrical connector (3) and remove sidebag sensor (4) | ||
| 7 | Install in the reverse order |
AIRBAG
| Number | Designation | Model 217 | |
|---|---|---|---|
| BA91.60-P-1008-01I | Bolt, sidebag and windowbag sensor to B-pillar | Nm | 9 |
